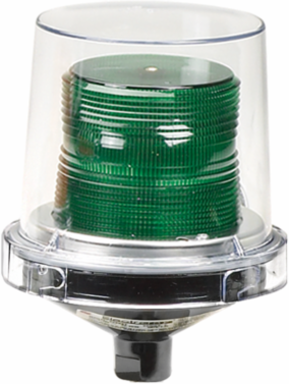

Federal Signal 225XST-I-024G Electraray Strobe Light, Hazardous Location, In-Rush Limited, UL and cUL CID2, 24VDC, Green
- MPN: 225XST-I-024G
- UPC: 782979215646
- PPN: FDS-225XST-I-024G
- UNSPSC: 39111706
CAD
$1348.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model 225XST is a hazardous location light with a black e-coated coated base and the inner fresnel lens is available in six colors. The clear polycarbonate outer dome can be quickly removed for easy access to inspect the unit or change the lamp.The 24VDC 225XST-I features a voltage in-rush limiting PCB design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices.Model 225XST is ideal for wet, corrosive atmospheres like those found in food processing industries, or anywhere a visual signal is needed.
Features
- Available in 24VDC with Limited In-Rush
- Six lens colors: Amber, Blue, Clear, Green, Magenta and Red
- 10,000 hour, high-intensity strobe tube
- 1/2-inch NPT pipe mount
- Indoor/outdoor use
- Type 4X, IP66 enclosure (Dome up orientation)
- IP69K compliant
- CSA Certified
- UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Body Color
- Black
- Candela Power Peak
- 580000
- Diameter (in)
- 5.5
- Flash Pattern Type
- 1x Flash
- Availability
- Contact Us for Availability
- Mount Type
- 1/2-Inch NPT Pipe
- Visual Signals Lens Color
- Green
- Height
- 7.5 in, 19.05 cm
Weight1.5 lbs
Candela Effective Power240
Certification ListingCSA, UL, cUL, NSF
Diameter (mm)139.7
Flashes Per Minute80
Lens ColorGreen
Operating Temp.-40˚ to +104˚F (-40˚ to +40˚C)
Depth7.5 in, 19.05 cm
Diameter5.5 in, 13.97 cm
