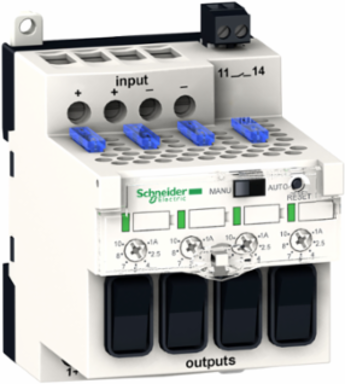

Schneider Electric ABL8PRP24100 Electronic Protection Module, 28-28.8V DC, 10A, 4 Channels
- MPN: ABL8PRP24100
- PPN: SCH-ABL8PRP24100
CAD
$348.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This ABL8 electronic protection module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 10A. This electronic protection module is ideal to protect up to 4 circuits against overloads and short-circuits with a total rated current of 10 amperes. It controls and protects up to 4 independent auxiliary circuits with a single power supply unit. Its complementary function is a 1-pole breaking by channel. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,470kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Documentation & Downloads
Specifications
Key Specifications
- Output Voltage
- (Uin-0.3) V DC
- Product Or Component Type
- electronic protection module
- Maximum Output Current
- 10 A per channel, rating: 1/2.5/4/5/7/8/10
Range Of ProductPhaseo
Input Voltage24...28.8 V DC
Complementary
- Complementary Function
- 2-pole breaking by channel
- Marking
- CE
- Net Weight
- 0.47 kg
- Connections - Terminals
- input connection screw type terminals 4 x 0.5...4 x 10 mm² AWG 20...AWG 8 || diagnostic relay removable screw terminal block 1 x 2.5 mm² AWG 14 || output connection screw type terminals 8 x 0.5...8 x 4 mm² AWG 20...AWG 10
- Name Of Test
- electrostatic discharges IEC 61000-4-2 || emission IEC 61000-6-3 || induced electromagnetic field IEC 61000-4-6 level 3 || radiated electromagnetic field IEC 61000-4-3 level 3 || rapid transient IEC 61000-4-4 level 3 || surge IEC 61000-4-5 level 2 || conducted/radiated emissions EN 55022 class B || emission EN 50081-1
- Number Of Output Channels
- 4
- Operating Altitude
- 2000 m
Fixing Modeby clips 35 mm symmetrical DIN rail vertical || on panel
Input Voltage Limits19...32 V
Input Current40 A
Output Protection Typeagainst overload 1.3 x In || against short-circuits automatic reset || line protection 1 x 15 A integrated fuse per channel
Local Signallingchannel status 1 LED per channel green/red) || channel status 1 relay
Breaking Capacity1000 A 32 V DC by fuse
Environment
- Product Certifications
- RCM || EAC
- Standards
- UL 508 || CSA C22.2 No 60950-1
- Vibration Resistance
- 2 gn 11.9-150 Hz)IEC 61131-2 || 3.5 mm 3-11.9 Hz)IEC 61131-2
- Ambient Air Temperature For Storage
- -40-85 °C
- Relative Humidity
- 0-90 % during operation || 0-95 % during storage
Ambient Air Temperature For Operation-25-60 °C
Environmental CharacteristicEMC IEC 61000-6-3 || EMC IEC 61000-6-2 || safety IEC 60950-1 || safety EN/IEC 61204-3
Ip Degree Of ProtectionIP20 IEC 60529
Overvoltage Categoryclass II VDE 0106-1
Dielectric Strength500 V between input and ground || 500 V between output and ground
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1412018EN
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1412018EN
