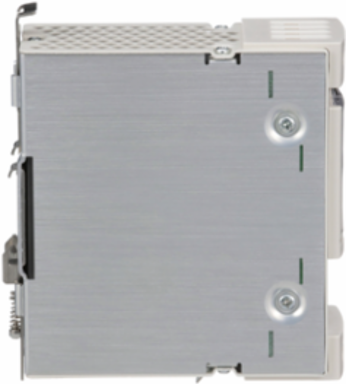

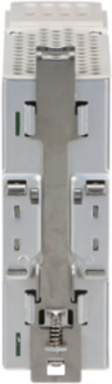

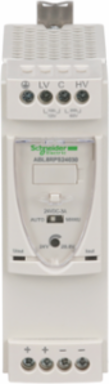

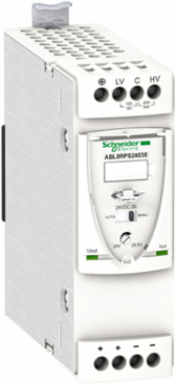

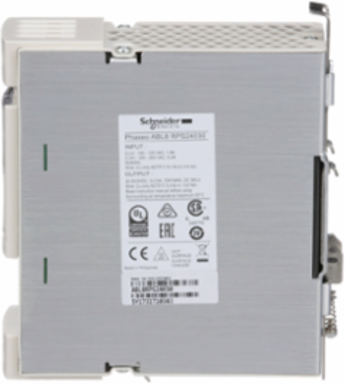

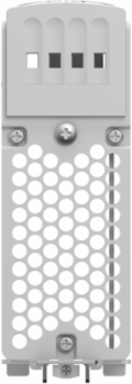

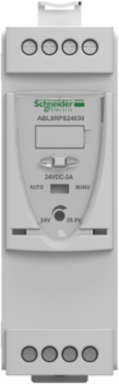

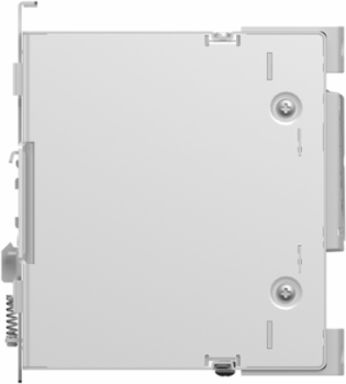

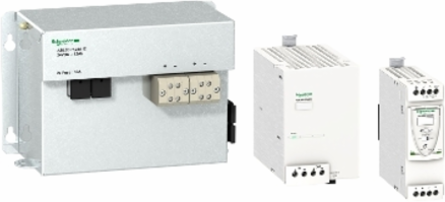

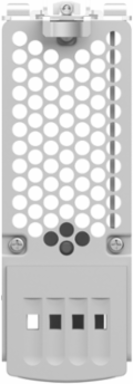

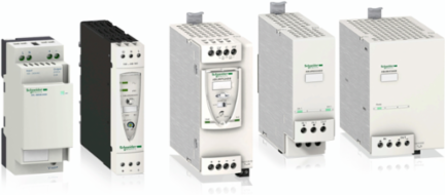

Schneider Electric ABL8RPS24030 Regulated Switch Mode Power Supply 24V 3A 72W 100-500V AC
- MPN: ABL8RPS24030
- PPN: SCH-ABL8RPS24030
CAD
$310.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 3A at 24V DC and a rated power output of 72W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 44mm-wide. It weighs 0,300kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD07, GV2RT06 and GV2ME06 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Features
- Designed for high-performance automation systems, this Phaseo Universal power supply accepts a wide input range from 100V to 500V AC, allowing for seamless integration into single-phase or two-phase (phase-to-phase) electrical architectures. This versatility reduces the need for multiple stock units, making it an ideal choice for global machinery manufacturers who need a reliable power solution across different regional utility standards.
- Delivering a precision-regulated 24V DC output at a 3-amp capacity, this switched-mode power supply (SMPS) ensures your sensitive electronic components such as PLCs, HMIs, and industrial sensors receive clean, ripple-free energy. This high level of voltage stability prevents unexpected system resets and data errors, ensuring your automated production line maintains maximum uptime and accuracy.
- Featuring an intuitive front-facing LED display and a dedicated diagnostic relay contact, the ABL8RPS24030 provides real-time status updates on output voltage and current levels. This proactive monitoring allows maintenance teams to identify potential overloads or voltage drops before they lead to a complete system failure, facilitating predictive maintenance and reducing emergency troubleshooting time.
- Engineered with an "extra power" function, this unit can deliver an temporary current boost above its 3A rating to overcome the high starting torque and inrush current required by solenoids and DC motors. This eliminates the need to oversize your power supply for peak loads, saving valuable cabinet space and reducing overall component costs while ensuring reliable equipment startups.
- Fully UL 508, CSA, and CE certified, this Schneider Electric unit is built with high-grade thermal protection and short-circuit safeguards to prevent fire hazards in the event of a fault. Its rugged DIN-rail mountable housing and wide operating temperature range make it a dependable choice for demanding manufacturing floors where vibration and heat are constant factors.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Philippines, Singapore, United States |
|---|
| Depth | 125 mm |
|---|
Complementary Attributes
| Rated Power In W | 72 W |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Efficiency At Full Load | 170...550 V AC, 85...132 V AC |
| Mounting Support | 35 x 15 mm symmetrical DIN rail, 35 x 7.5 mm symmetrical DIN rail |
| Certificate Agency | cCSAus, EAC, UL, RCM, KC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.4080383699446536, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.2 kg CO2 eq., 0.23040415845605441 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 105 kg CO2 eq., 105.27885323852252 |
| Local Publishable Date | 2026-03-25 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI120913EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1905 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Compatibility Code | ABL8R |
| Efficiency | 87 % |
| Marking | CE |
| Permissible Temporary Current Boost | 1.5 x In for 4 s) |
| Power Factor | 0.51 at 240 V AC0.59 at 120 V AC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Provided Equipment | power factor correction filter IEC 61000-3-2 |
| Returnability | Yes |
| Status Led | 1 LED (green and red) output voltage1 LED (green, red and orange) output current |
| Total Lifecycle Carbon Footprint | 128 kg CO2 eq. |
| Pep Code | ENVPEP061201EN |
| Pep Verification Date | 2025-10-31 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Indonesia, ID |
| Energy Model - Use [B6] | Electricity origin |
| Recyclability Potential In % | 40 |
| Width Nominal | 45 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504409540 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Environmental Characteristic | safety conforming to EN/IEC 61204-3, EMC conforming to IEC 61000-6-1, EMC conforming to IEC 61000-6-3, EMC conforming to IEC 61000-6-2, EMC conforming to IEC 61000-6-4, EMC conforming to EN/IEC 61204-3safety conforming to IEC 60950-1 |
| Supply | SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41 |
| Connections - Terminals | screw type terminals 3 x 0.5...3 x 4 mm², 22 AWG...12 AWG) input connectionscrew type terminals 1 x 0.5...1 x 4 mm², 22 AWG...12 AWG) input ground connectionscrew type terminals 4 x 0.5...4 x 4 mm², 22 AWG...12 AWG) output connection, screw type terminals 1 x 0.5...1 x 4 mm², 22 AWG...12 AWG) output ground connection |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1.4475444115179343, 1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 21 kg CO2 eq., 20.937442573338203 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Dielectric Strength | 3500 V with between input and ground4000 V with between input and output500 V with between output and ground |
| Inrush Current | 30 A |
| Operating Position | vertical |
| Power Dissipation In W | 7.8 W |
| Power Supply Type | regulated switch mode |
| Product Or Component Type | power supply |
| Range Of Product | Modicon Power Supply |
| Software Version | v6.2.5-6 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To protect and ensure service continuity of an electrical system in industrial atmosphere 34% of the time for 10 years. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 232.3152 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 125 mm |
| Anti-harmonic Filter | low frequency harmonic currents |
| Package Weight(Lbs) | 776.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), 50-60 °C with derating factor mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m) |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI120913EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP061201EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 128.30228275177936 |
| Environmental Disclosure | ENVPEP061201EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-31 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | power supply |
|---|---|
| Range Of Product | Modicon Power Supply |
| Provided Equipment | power factor correction filter IEC 61000-3-2 |
|---|
ETIM
| ETIM 8 | EC002540 |
|---|
| ETIM 9 | EC002540 |
|---|
Output Attributes
| Output Coupling | parallel, series |
|---|---|
| Output Voltage | 24 V DC |
| Power Supply Output Current | 3 A |
| Output Protection Type | against overload, protection technology: manual or automatic resetagainst overvoltage, protection technology: 30...32 V, manual reset, against short-circuits, protection technology: manual or automatic resetagainst undervoltage, protection technology: tripping if U < 21.6 Vthermal, protection technology: automatic reset |
|---|---|
| Output Voltage Limits | 24...28.8 V adjustable |
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Efficiency At Full Load | 170...550 V AC, 85...132 V AC |
|---|---|
| Efficiency | 87 % |
| Input Voltage | 100...120 V AC single phase N-L1, 200...500 V AC phase to phase L1-L2 |
|---|
