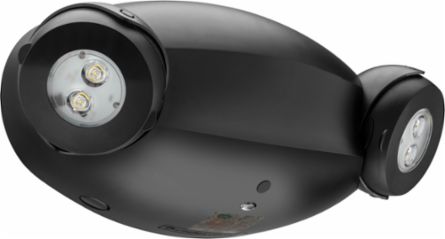

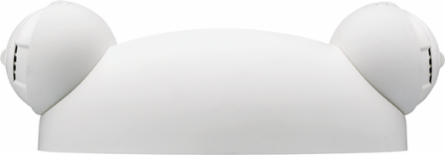

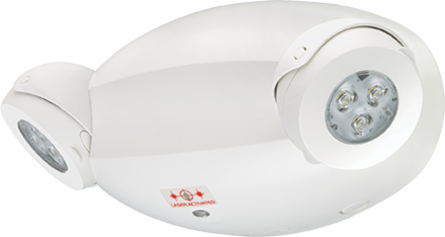

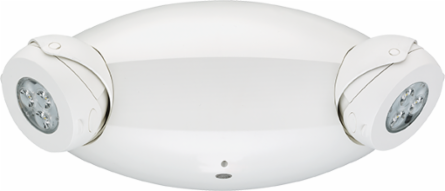

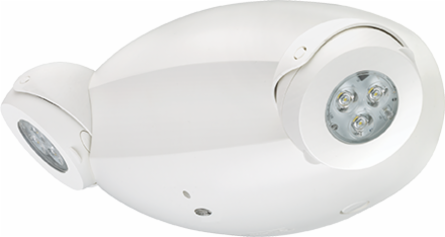

Lithonia Lighting ELM6L UVOLT LTP SDRT Emergency Light Fixture, 1100 LM, 2.78 W, 120-347 V
- MPN: ELM6L UVOLT LTP SDRT
- UPC: 191723916454
- PPN: LTH-ELM6L UVOLT LTP SDRT
- UNSPSC: 39111709
CAD
$361.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Design Select
Features

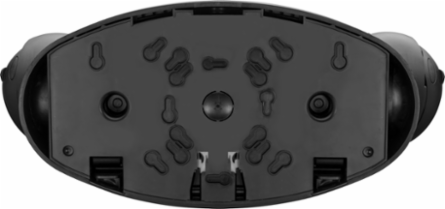

- MOUNTING: Wall and ceiling mount with tool-less removal of front cover from back-plate for ease of installation and maintenance
- UPGRADE: Easily replaces existing emergency lighting units
- CONTROLS: Optional STAR self-testing automated reporting feature
- RATINGS / LISTINGS: UL damp location listed standard and wet location listed with the WPVS accessory, all at 50-104°F (10-40°C), meets or exceeds all applicable requirements for Life Safety Code and state specific requirements
- VOLTAGE: Functions between 120 and 347 volt with input wattage of 1.35 watts
- HOURS OF LIFE: The typical life of the LED lamp is 10 years using two 1 Watt LED lamps for emergency light
- HOUSING: Standard thermoplastic, compact and low-profile design, it's 5VA flame rated, impact- and scratch-resistant and corrosion proof, the UV-stable resin resists discoloration from natural and man-made light sources
- SELF-DIAGNOSTICS: Includes test switch, status indicator and rechargeable battery with maintenance-free nickel-cadmium battery provides 90 minutes of emergency power
- WARRANTY: 5-year limited warranty
- DIMENSIONS: 13.37" x 5.93" x 3.7"
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Color
- White
- Mounting
- Surface
- Wattage
- 2.78 W
- Fixture Type
- Emergency Lighting Unit
- Type
- Emergency Lighting Unit
Voltage Rating120-347 V
Lamp TypeLED - Static
Environmental ConditionsIndoor
Battery9.6 volts
Lumens1100 LM LM
