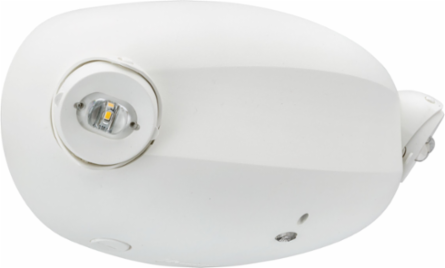

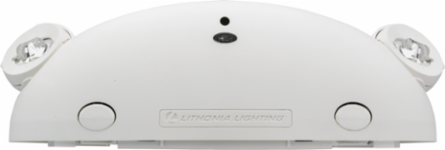

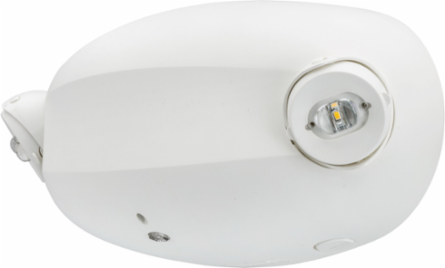

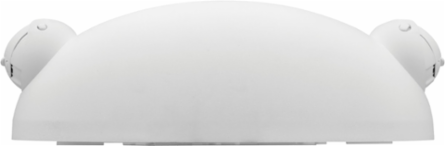

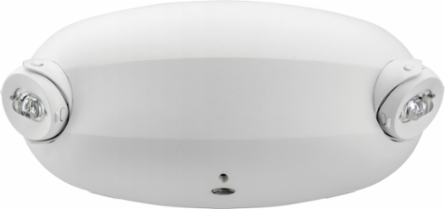

Lithonia Lighting ELM2L UVOLT LTP M12 Emergency LED Light Fixture, 120-277V, 220 Lumens

Description

Features

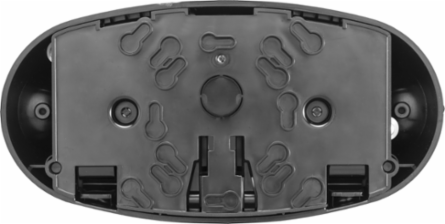

• MOUNTING: Wall and ceiling mount with tool-less removal of front cover from back-plate for ease of installation and maintenance
• UPGRADE: Easily replaces existing emergency lighting units
• CONTROLS: Optional STAR self-testing automated reporting feature
• RATINGS / LISTINGS: UL damp location listed standard and wet location listed with the WPVS accessory, all at 50-104°F (10-40°C), meets or exceeds all applicable requirements for Life Safety Code and state specific requirements
• VOLTAGE: Functions between 120 and 347 volt with input wattage of 1.35 watts
• HOURS OF LIFE: The typical life of the LED lamp is 10 years using two 1 Watt LED lamps for emergency light
• HOUSING: Standard thermoplastic, compact and low-profile design, it's 5VA flame rated, impact- and scratch-resistant and corrosion proof, the UV-stable resin resists discoloration from natural and man-made light sources
• SELF-DIAGNOSTICS: Includes test switch, status indicator and rechargeable battery with maintenance-free nickel-cadmium battery provides 90 minutes of emergency power
• WARRANTY: 5-year limited warranty

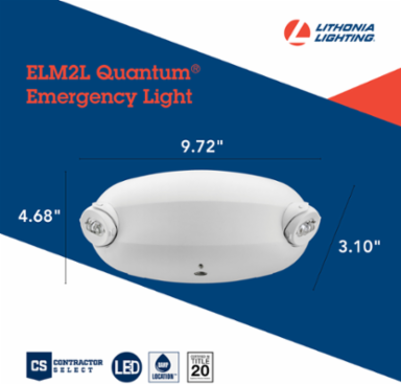

• DIMENSIONS: 9.72" x 4.68" x 3.1"
