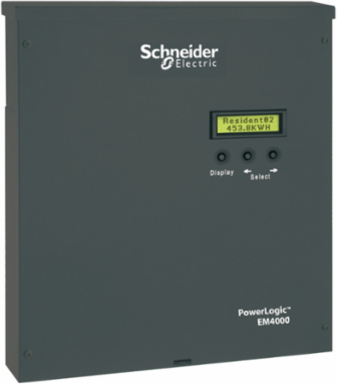

Square D METSEEM403336 PowerLogic EM4000 Multi-Circuit Energy Meter, 24 Inputs, 277V, 60 Hz
- MPN: METSEEM403336
- PPN: SCH-METSEEM403336
CAD
$4001.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This multi-circuit power meter is part of the PowerLogic EM4000 Series. This compact multi-circuit energy meter enables reliable metering of building electrical loads with a low installation cost-per-point. It combine revenue-accurate electricity sub-metering with advanced communications technology. It is ideal for departmental metering applications and M&V within office, condominiums, malls and other multi-user environments. This version monitor up to 24 tenants with a single device, combined with 0.333 volt split or solid core current transducer. Designed for 120 (phase neutral) or 208 volts (phase phase) networks, working at 60 Hz. Measurement accuracy is plus or minus 0.5 %, compliant with ANSI C12.1 and C12.20 Class 0.5 ; IEC 62053-22 Class 0.5S. The printed board is installed in a Type 1 black enclosure, with an integrated backlit LCD display, 2 lines, on the door. Mechanical dimensions are 335 mm in width, 305 mm in height and 55 mm in depth ; for 4 kg.
Documentation & Downloads
Specifications
Key Specifications
- Network Frequency
- 60 Hz
- [Us] Rated Supply Voltage
- 277 V AC 60 Hz
- Type Of Measurement
- current per phase, rms || negative active energy || voltage per phase, rms || negative reactive energy || apparent energy || pulse count || active and reactive power || apparent power || positive active energy || positive reactive energy
- Product Or Component Type
- multi-circuit energy meter
- Device Application
- sub billing
- Range
- PowerLogic
Energy Managementbilling analysis || sub billing and cost allocation
Power Quality Analysiscompliance monitoring
Power Monitoringbasic instrumentation
Product NamePowerLogic EM4000
Device Short NameEM4033
Complementary
- Communication Port Support
- RJ45 ETHERNET || RS485
- Measurement Voltage
- 80-480 V without PTs || 480-999000 V with external PTs
- Communication Port Protocol
- BACnet IP || FTP || HTTP || Modbus TCP/IP || SNTP
- Display Type
- backlit LCD
- Number Of Inputs
- 2 pulse
Measurement Accuracy+/- 0.5 % of the measuring range
Sampling Rate256 samples/cycle
Analogue Input Typesolid core CT 0.333 V24 x single pole || solid core CT 0.333 V12 x single phase || solid core CT 0.333 V8 x three phase || split core CT 0.333 V24 x single pole || split core CT 0.333 V12 x single phase || split core CT 0.333 V8 x three phase
Communication Of Datavoltage || negative active energy || positive active energy || positive reactive energy || negative reactive energy || apparent energy
Messages Display Capacity2 lines of 16 characters
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Pollution Degree
- 2
- Ambient Air Temperature For Storage
- -40-70 °C
- Standards
- FCC part 15 class B || ICES-003 || IEC 6100-4-5 || CSA C22.2 No 61010-1-4 || ANSI/TIA-968-A : 2002 || CSA C22.2 No 61010-1 || EN 55022
- Product Certifications
- UL
- Enclosure Type
- NEMA type 1
- Net Weight
- 4 kg
- Operating Altitude
- <= 3000 m
Height33.5 cm
Mounting Modewall mount
Relative Humidity90-90 % 40-40 °C
Device Mountingwall mounted
Width30.5 cm
Depth5.5 cm
Type Of Installationindoor installation || enclosed outdoor
Offer Sustainability
- Eu Rohs Directive
- Under investigation
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
