Square D METSEEM483316 EM4800 multi-circuit energy meter - 24 x 333 mV inputs, 120 V - 60 Hz
- MPN: METSEEM483316
- UPC: 785901950059
- PPN: SCH-METSEEM483316
CAD
$4627.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

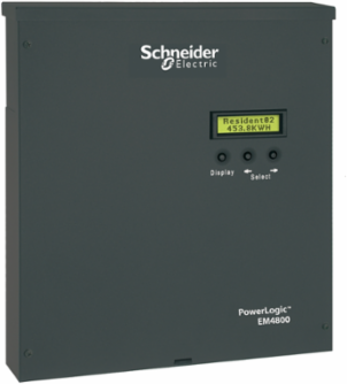

This multi-circuit power meter is part of the PowerLogic EM4800 Series. This compact multi-circuit energy meter enables reliable metering of individual tenants with a low installation cost-per-point. It combine revenue-accurate electricity sub-metering with advanced communications technology. It is ideal for multi-tenant or departmental metering applications within office, condominiums, malls and other multi-user environments. This version monitor up to 24 tenants with a single device, combined with 0.333 volt split or solid core current transducer. Designed for 120 volts networks, working at 60 Hz. Measurement accuracy is plus or minus 0.5 %, compliant with ANSI C12.1 and C12.20 Class 0.5 ; IEC 62053-22 Class 0.5S. The printed board is installed in a Type 1 black enclosure, with an integrated backlit LCD display, 2 lines, on the door. Mechanical dimensions are 335 mm in width, 440 mm in height and 55 mm in depth ; for 5.4 kg.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Canada, France, United States
Depth5.5 cm
Communications & Management Attributes
- Communication Of Data
- voltage, negative reactive energy, negative active energy, positive reactive energy, positive active energy, apparent energy
- Communication Port Support
- RJ45 ETHERNETRJ11 modemSUB-D 9 RS232
Communication Port ProtocolBACnet IP, FTP, HTTP, Modbus TCP/IP, SNTP
Important Information Attributes
- Energy Management
- sub billing and cost allocation, billing analysis
- Type Of Measurement
- current per phase, rms, voltage per phase, rms, negative reactive energy, apparent energy, pulse count, positive active energy, positive reactive energy, negative active energy
- Local Publishable Date
- 2025-06-18
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Compatibility Code
- EM4800
- Device Short Name
- EM4800
- Energy Efficiency Optimized
- False
- Measurement Voltage
- 80-480 V480-999000 V with external VT
- Mounting Mode
- wall mount
- Power Monitoring
- basic instrumentation
- Product Name
- PowerLogic EM4800
- Range
- PowerLogic
- Returnability
- No
- Height Nominal
- 30.5 cm
- Certificate Agency
- UL
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9030333800
Market Segmentbuildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: panelboardbuildings small building cost management: billing: panelboard, buildings medium building cost management: billing: panelboard, buildings large building cost management: billing: panelboard, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: panelboard
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionDPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1319
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Device Applicationsub billing
Display TypeBacklit LCD
Measurement Accuracy+/- 0.5 % of the measuring range+/- 0.5 % of the measuring range
Messages Display Capacity2 lines of 16 characters
Network Frequency60 Hz
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typemulti-circuit energy meter
Range Of ProductPowerLogic
Sustainable PackagingNo
Width Nominal33.5 cm
[Us] Rated Supply Voltage120 V AC 60 Hz
Package Weight(Lbs)7.257 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Operating Altitude
- <= 9842.52 ft (3000 m), <= 9842.52 ft (3000 m)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C-40-70 °C
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 90-90 % 40-40 °C
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- multi-circuit energy meter
Range Of ProductPowerLogic
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 0
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
- split core CT 0.333 V12 x single phasesplit core CT 0.333 V8 x three phase, solid core CT 0.333 V24 x single polesolid core CT 0.333 V12 x single phasesolid core CT 0.333 V8 x three phase, split core CT 0.333 V24 x single pole
Number Of Inputs2 pulse
