Killark

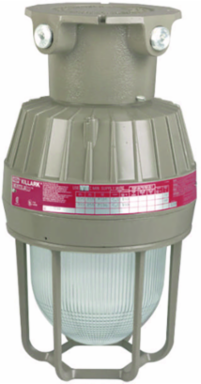

Killark EMI15X2G EMI Series- Aluminum 150W Incandescent Light Fixture - 3/4" Ceiling Mount With Guard - 250VAC Max

EMI Series- Aluminum 150W Incandescent Light Fixture - 3/4" Ceiling Mount With Guard - 250VAC Max
  • MPN: EMI15X2G
  • UPC: 783936142685
  • PPN: HBL-EMI15X2G

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1338.66/ EA

Description

The EM series Explosion Proof medium base fixture is designed for low bay applications. This fixture is made with a cast copper-free aluminum housing and mount that is powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments. The EM Series is factory sealed so no external seal is required in Explosive environments.

Features

  • Four light sources—Incandescent, compact fluorescent, high pressure sodium and metal halide
  • Factory sealed - no external seal needed. Simply wire mounting cap and thread on fixture to install. Corrosion resistant - copper-free aluminum die-cast construction. Baked powder epoxy finish, electrostatically applied. Exposed hardware is 316 grade stainless steel.
  • Mounting choice—Pendant, ceiling, 25˚ stanchion or 90˚ wall mount, all with “wireless” design that allows fast, easy fixture installation
  • Factory sealed—No external seal needed. Simply wire mounting cap and thread on fixture to install
  • Compact size—Medium base incandescent and HID lamps, plus PL fluorescent lamps allow smaller fixture design
  • Corrosion resistant—Copper-free aluminum die-cast construction.
  • Baked powder epoxy finish, electrostatically applied.
  • Exposed hardware is 316 grade stainless steel.

Specifications

Specifications

Color
Tan
Lamp Type
Medium Base
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Operating Cycles
10,000 hrs
Series
EM
UPC
783936142685
Hub Size
3/4"
Voltage Rating
120-277 VAC
Finish TypePowder Epoxy Paint
Light SourceIncandescent
Mounting TypeCeiling
Optic TypeGlass Globe - Fluted
TypeAluminum Incandescent Fixture
Gross Weight with Packaging13.5
Frequency Rating60 Hz
Wattage150 W

Downloads
