Killark

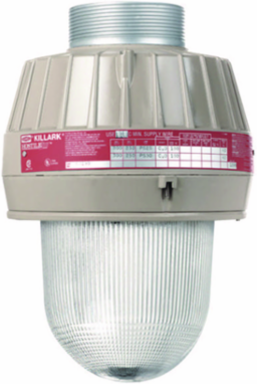

Killark EMI20 Aluminum 300W Incandescent Light Fixture 120-277 VAC, 7.5 Inch Height

Aluminum 300W Incandescent Light Fixture 120-277 VAC, 7.5 Inch Height
  • MPN: EMI20
  • UPC: 783936143255
  • PPN: HBL-EMI20

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$786.32/ EA

Description

EMI Series - Aluminum 200 Watt Incandescent Light Fixture - 250VAC Max

Features

  • Four light sources—Incandescent, compact fluorescent, high pressure sodium and metal halide
  • Mounting choice—Pendant, ceiling, 25˚ stanchion or 90˚ wall mount, all with “wireless” design that allows fast, easy fixture installation
  • Factory sealed—No external seal needed. Simply wire mounting cap and thread on fixture to install
  • Compact size—Medium base incandescent and HID lamps, plus PL fluorescent lamps allow smaller fixture design
  • Corrosion resistant—Copper-free aluminum die-cast construction.
  • Baked powder epoxy finish, electrostatically applied.
  • Exposed hardware is 316 grade stainless steel.
  • Factory sealed - no external seal needed. Simply wire mounting cap and thread on fixture to install. Corrosion resistant - copper-free aluminum die-cast construction. Baked powder epoxy finish, electrostatically applied. Exposed hardware is 316 grade stai

Specifications

Specifications

Country of Origin
United States
Dimensions
13 in x 8 in x 7.5 in
Height
7.5 in
Optic Type
Glass Globe - Fluted
Width
8 in
Frequency Rating
60 Hz
Mounting Type
Luminaire Only
Type
Aluminum Incandescent Fixture
Class Code
D20
Freight Class Code
10970009
Image Actual Or Representative
A
MSDS Flag
No
Returnable Indicator
Yes
Gross Weight with Packaging
9.1
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Base Unit of Measure
EA
Master Pack Description
Each
ColorTan
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length13 in
Voltage Rating120-277 VAC
Finish TypePowder Epoxy Paint
Lamp TypeMedium Base
Operating Cycles10,000 hrs
Wattage300 W
Description - InvoiceINCAND 200W TANK ASSEMBLY
Harmonization Code9405499900
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD20D201
Light SourceIncandescent
SeriesEM Series
Carton - SCC-14 Next Lower Level Sub Pack00783936143255
