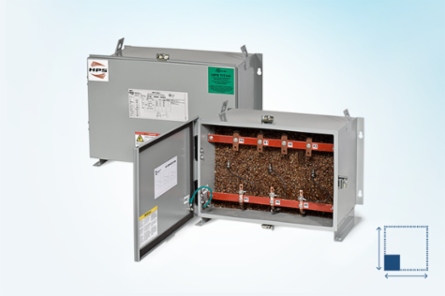

Hammond Power Solutions TN2A0045PBKF Titan N 45kVA 600D→208Y/120 Delta-WyeN vKF Case DQT6 (TN2A0045PBKF)
- MPN: TN2A0045PBKF
- UPC: 803423151317
- PPN: HPS-TN2A0045PBKF
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HPS Titan-N encapsulated three-phase distribution transformer for Class I Division 2 hazardous locations. Rated 45 kVA. Delta-WyeN connection.
Features
- DOE 2016 / NRCan 2019 energy-efficient compliant
- Class I Division 2 hazardous-location rated
Documentation & Downloads
Specifications
Construction
- Case Style
- DQT6
- Wiring Diagram
- SCD 2.3
MountingF (Opt. W)
Identification
- Generation
- 2
- Phase Configuration
- Delta-WyeN
- Secondary Voltage Code
- B
- Secondary Voltage (Decoded)
- 208Y/120
Phase CodeA
Primary Voltage CodeP
Primary Voltage (Decoded)600D
Variant TailKF
Physical
- Width
- 26.13 in (664 mm)
- Height
- 21.88 in (556 mm)
Depth19.75 in (502 mm)
Weight635 lb (286 kg)
Electrical
- Secondary Voltage
- 208Y/120
- kVA Rating
- 45
Frequency60 Hz
