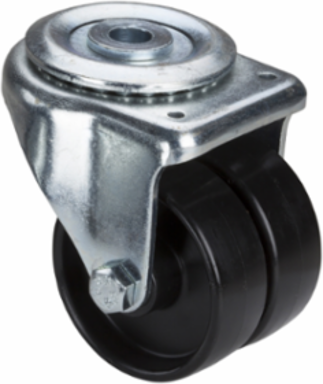

Schneider Electric NSYSW Enclosure Casters Set of 4, Double Roller, 160kg Maximum Load, 92 mm
- MPN: NSYSW
- PPN: SCH-NSYSW
CAD
$228.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Spacial SF enclosure casters. 91 mm. Direct attachment to enclosure, double roller. Maximum load of 160kg per caster. Set of 4 casters.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Depth200 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 6 kg CO2 eq., 5.555052888
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 10 kg CO2 eq., 10.26751493
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- fixing elements4 caster
- Energy Efficiency Optimized
- False
- Permanent Permissible Load
- 180 kg
- Product Or Component Type
- transport casters
- Range
- PanelSeT
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 17 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- real: 92 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8302200000
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.454873448, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.523957426, 0.5 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-12-11
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Diameter64 mm
Fixing Modeby screws - structure of enclosure
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Recyclability Potential In %98
Accessory / Separate Part Categorytransport accessory
Package Weight(Lbs)2.348 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 16.8013987
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- transport casters
ETIM
- ETIM 8
- EC002621
ETIM 9EC002621
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
