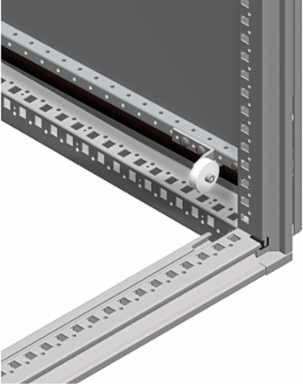

Schneider Electric NSYSDRC Door-Centering Caster, 60 kg Load, Fixing Elements for PanelSeT Enclosures
- MPN: NSYSDRC
- PPN: SCH-NSYSDRC
CAD
$220.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Spacial SF/SM door centring caster. . Multi-purpose application. Mounting on door. Fixing by fixing element on door reinforcement frame. 60 kg load. 1 x centring roller, fixing elements include.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 1.12840685
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.085656863
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1912
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Mounting Location
- on door
- Product Or Component Type
- door centring caster
- Range
- PanelSeT
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 3 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8302200000
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.092399177, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.106432317, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-04-14
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Compositionfixing elements1 x centring roller
Fixing Modeby fixing element - on door reinforcement frame
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Recyclability Potential In %98
Package Weight(Lbs)499.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 3.412895207
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- door centring caster
ETIM
- ETIM 8
- EC002626
ETIM 9EC002626
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
