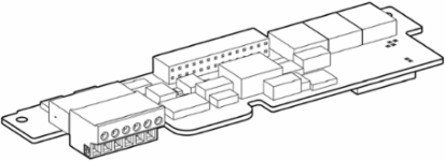

Schneider Electric VW3A3407 Encoder Interface Card for Altivar, 24V DC, Push-Pull Outputs, 0.175 A
- MPN: VW3A3407
- PPN: SCH-VW3A3407
CAD
$191.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This encoder interface card can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. It is compatible with push-pull outputs encoder technology. This card is simple to install and remove, it is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar 61 and Altivar 71.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Complementary Attributes
- Maximum Cable Distance Between Devices
- 500 m
- Maximum Supply Current
- 0.175 A
Maximum Operating Frequency300 kHz
Important Information Attributes
- Number Of Pulses Per Revolution
- 10000 ATV71H......3835000 all ATV61 drives, 5000 ATV71H...M3, 5000 ATV71H...M3X, 5000 ATV71H...N4
- Voltage State 0 Guaranteed
- <= 1.5 V, <= 1.5 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.01909496, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.005231652, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0 kg CO2 eq., 0.00059042
- Local Publishable Date
- 2026-02-26
- Stocking Flag
- Y
- Device Type
- Variable speed drive - VSD option & accessory
- Traceability
- No
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Altivar
- Software Version
- EIME v5.8.1
- Total Lifecycle Carbon Footprint
- 5 kg CO2 eq.
- Database Version
- 2018-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To allow the control operation of a variable speed drive. Calculation of the environmental impacts is based on 20 years of product service lifetime. The usage profile taken into account is 100% uptime in use phase.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 0.001
- Energy Model - Installation [A5]
- Electricity Mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; < 1kV; EU-27
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Manufacturing [A1-a3]
- 532.6076
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 61.2942
- Water Pollution (M3) Manufacturing [A1-a3]
- 416.7014
Protection Typeoverload protection, short-circuit protection
Voltage State 1 Guaranteed> 11.5...< 25 V, > 11.5...< 25 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.06757828
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 4.84108
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Weee ApplicabilityComponent
Weee Exclusion RationaleComponent not in scope – non independent function
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1030
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Electrical Connectionterminal 0.2 mm² 24 AWG) <500 m, encoder, 100 mA 14 V
Product Or Component Typeencoder interface card
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2010011EN
Pep Verification Date2020-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity Mix; AC; < 1kV; EU-27
[Us] Rated Supply Voltage24 V DC 20-30 V)
Package Weight(Lbs)142.000 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]47.3674
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]58.3453
Customs Code8517620090
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 4.933575312
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2010011EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2010011EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- encoder interface card
Range Of ProductAltivar
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Output Attributes
- Discrete Output Type
- push-pull
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Signal
- A, B, compliment of A, compliment of B/AB/A
Input Impedance1000 Ohm
