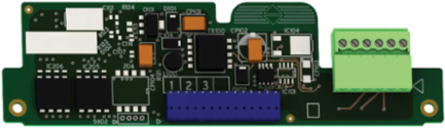

Schneider Electric VW3A3401 Encoder Interface Card for Altivar, 5V DC, RS422, Differential Output
- MPN: VW3A3401
- PPN: SCH-VW3A3401
CAD
$191.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This encoder interface card can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. It is compatible with RS 422 differential outputs encoder technology. This card is simple to install and remove, it is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar 61 and Altivar 71.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia, United States |
|---|
Communications & Management Attributes
| Communication Port Protocol | RS422 |
|---|
Complementary Attributes
| Maximum Cable Distance Between Devices | 50 m |
|---|---|
| Maximum Supply Current | 0.2 A |
| Maximum Operating Frequency | 300 kHz |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electrical Connection | terminal 0.2 mm² 24 AWG) <25 m, encoder, 100 mA 4.5 V, terminal 0.5 mm² 20 AWG) <25 m, encoder, 200 mA 4.5 V, terminal 0.5 mm² 20 AWG) <50 m, encoder, 100 mA 4.5 Vterminal 0.75 mm² 18 AWG) <50 m, encoder, 200 mA 4.5 V |
| Protection Type | short-circuit protection, overload protection |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.091322 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 7 kg CO2 eq., 6.542 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Manufacturing Carbon Footprint | 6.542 |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Or Component Type | encoder interface card |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2010011EN |
| Pep Verification Date | 2020-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity Mix; AC; < 1kV; EU-27 |
| Recyclability Potential In % | 11 |
| Carbon Footprint (Kg Co2 Eq Total Life Cycle) | 6.6667 |
| Package Weight(Lbs) | 142.000 g |
| Warranty (In Months) | 18 |
| Air Pollution (M3) Manufacturing [A1-a3] | 719.74 |
| Air Pollution (M3) End Of Life [C1-c4] | 1.444 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 64.01 |
| Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] | 6.542 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 41.434 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 2.2817 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 80.131 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 82.83 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 2.6993 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 1.2856 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 78.845 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 2.1415 |
| Water Pollution (M3) Manufacturing [A1-a3] | 563.11 |
| Water Pollution (M3) Installation [A5] | 1.0128 |
| Customs Code | 8517620090 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Number Of Pulses Per Revolution | 10000 ATV71H......3835000 all ATV61 drives, 5000 ATV71H...M3, 5000 ATV71H...M3X, 5000 ATV71H...N4 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.025804, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0070698, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0 kg CO2 eq., 0.00059042 |
| Local Publishable Date | 2026-07-16 |
| Stocking Flag | Y |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1030 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Altivar |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 7 kg CO2 eq. |
| Database Version | 2018-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To allow the control operation of a variable speed drive. Calculation of the environmental impacts is based on 20 years of product service lifetime. The usage profile taken into account is 100% uptime in use phase. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 0.001 |
| Energy Model - Installation [A5] | Electricity Mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; AC; < 1kV; EU-27 |
| [Us] Rated Supply Voltage | 5 V DC 5-5.5 V) |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Total Life Cycle | 722.71 |
| Air Pollution (M3) Distribution [A4] | 1.0977 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle | 64.63 |
| Global Warming (Kg.Equivalent.Co2) Total Life Cycle | 6.6667 |
| Hazardous Waste Disposed Of (Kg) Total Life Cycle | 41.639 |
| Non-hazardous Waste Disposed Of (Kg) Total Life Cycle | 2.3012 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 80.795 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle | 83.496 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 2.7014 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 1.2856 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 79.509 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 2.1436 |
| Water Pollution (M3) Total Life Cycle | 572.03 |
| Water Pollution (M3) Distribution [A4] | 4.2435 |
| Water Pollution (M3) End Of Life [C1-c4] | 3.6462 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 6.6667 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2010011EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010011EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | encoder interface card |
|---|
| Range Of Product | Altivar |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|
| ETIM 9 | EC002025 |
|---|
Output Attributes
| Discrete Output Type | differential |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Signal | A, B, compliment of A, compliment of B |
|---|
| Input Impedance | 440 Ohm |
|---|
