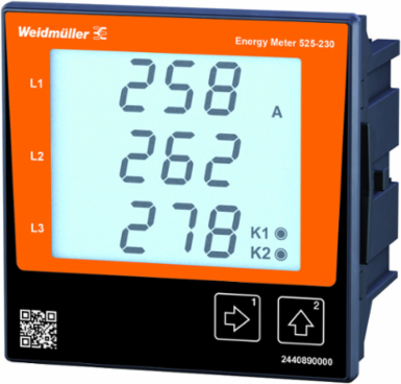

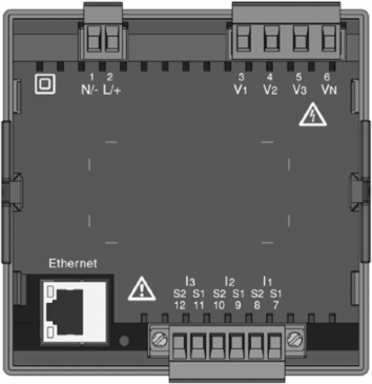

Weidmuller 2540890000 ENERGY METER 525-230
- MPN: 2540890000
- PPN: WDM-2540890000
CAD
$1330.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Supply voltage : 230 V
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
| UL File Number Search | E469563 |
|---|
Communication
| Interface | Ethernet |
|---|
| Protocol | Modbus TCP/IP, Modbus RTU over Ethernet, SNMP |
|---|

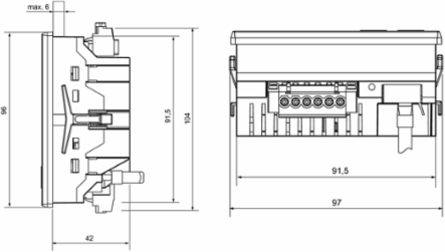

Dimensions And Weights
| Width | 96 mm |
|---|---|
| Height | 96 mm |
| Depth | 48 mm |
| Net weight | 250 g |
| Width (inches) | 3.78 inch |
|---|---|
| Height (inches) | 3.78 inch |
| Depth (inches) | 1.89 inch |
Measurement Data Recording
| Memory; minimum and maximum values | Yes |
|---|---|
| Software | ecoExplorer go® |
| Update interval register | 200 ms |
|---|---|
| Integrated logic | Yes |
Voltage Quality Measurement
| Harmonics, per order / voltage | 1.-40. |
|---|---|
| Distortion factor THD-U in % | Yes |
| Unbalanced | No |
| Brief interruptions | No |
| Harmonics, per order / current | 1.-40. |
|---|---|
| Distortion factor THD-I in % | Yes |
| Positive, negative and zero system | Yes |
| Sequence-of-events recorder function | No |
Measuring Current Input
| Current-measuring channels | 3 |
|---|---|
| Harmonics, per order / current | 1.-40. |
| Rated current | 1 / 5 A |
| Distortion factor THD-I in % | Yes |
|---|---|
| Measuring accuracy for current | 0.2 % |
| Residual current measuring | No |
Inputs/Outputs
| Temperature input | No |
|---|
Classifications
| ETIM 6.0 | EC002301 |
|---|---|
| eClass 9.0 | 27-14-23-30 |
| eClass 10.0 | 27-14-23-30 |
| ETIM 7.0 | EC002301 |
|---|---|
| eClass 9.1 | 27-21-03-01 |
| UNSPSC | 39-12-15-35 |
Measuring Voltage Input
| Distortion factor THD-U in % | Yes |
|---|---|
| Harmonics, per order / voltage | 1.-40. |
| Measurement range, voltage L-N, AC | 277 V |
| Quadrants | 4 |
| Four-wire system | Yes |
|---|---|
| Measurement range, voltage L-L, AC | 480 V |
| Measuring accuracy for voltage | 0.2 % |
| Three-wire system | Yes |
Technical Data
| Standards | EN 61326-1, IEC 61010-1, IEC 61010-2-030 |
|---|---|
| Measurement range, voltage L-L, AC | 480 V |
| Voltage supply | 90 - 277 V AC (50/60 Hz), 90 - 250 V DC |
| Three-wire system | Yes |
| Quadrants | 4 |
| Continuous measurements | Yes |
| Measurement result per second | 5 |
| Measuring accuracy for voltage | 0.2 % |
| Measurement accuracy for active energy (kWh, …/5 A) | Class 0.5S |
| Weekly time switch | No |
| Bimetal function | Yes |
| Measurement range, voltage L-N, AC | 277 V |
|---|---|
| Surge voltage category | 300 V CAT III |
| Supply voltage | 230 V |
| Four-wire system | Yes |
| Sampling frequency 50/60 Hz | 25.6 kHz |
| Effective value from the period (50/60 Hz) | 10 / 12 |
| Residual current measuring | No |
| Measuring accuracy for current | 0.2 % |
| Operating-hours counter | Yes |
| Current-measuring channels | 3 |
Insulation Coordination
| Surge voltage category | 300 V CAT III |
|---|
Temperatures
| Humidity at operating temperature | 0 - 75% RH |
|---|---|
| Operating temperature, max. | 55 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature | -10 °C...55 °C |
| Humidity at storage temperature | 0...90 % RH |
|---|---|
| Operating temperature, min. | -10 °C |
| Storage temperature, min. | -25 °C |
| Storage temperature | -25 °C...70 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E469563 |
|---|
