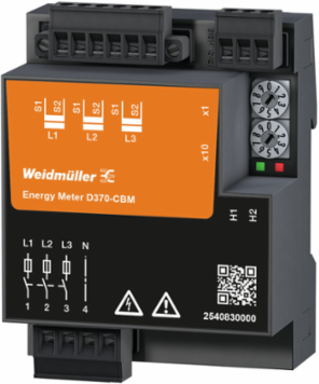

Weidmuller 2540830000 ENERGY METER D370-CBM
- MPN: 2540830000
- PPN: WDM-2540830000
CAD
$926.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Supply voltage :
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
| UL File Number Search | E469563 |
|---|
Communication
| Interface | RS485: 9,6 – 115,2 kbps |
|---|
| Protocol | Modbus RTU |
|---|
Dimensions And Weights
| Width | 71.6 mm |
|---|---|
| Height | 98 mm |
| Depth | 46 mm |
| Net weight | 150 g |
| Width (inches) | 2.819 inch |
|---|---|
| Height (inches) | 3.858 inch |
| Depth (inches) | 1.811 inch |
Measurement Data Recording
| Memory; minimum and maximum values | Yes |
|---|---|
| Number of memory values | 160 k |
| Min. memory recording interval | 60 s |
| Integrated logic | No |
| Memory size | 4 MB |
|---|---|
| Update interval register | 200 ms |
| Software | ecoExplorer go® |
Voltage Quality Measurement
| Harmonics, per order / voltage | 1.-25., odd |
|---|---|
| Distortion factor THD-U in % | Yes |
| Unbalanced | No |
| Brief interruptions | No |
| Harmonics, per order / current | 1.-25., odd |
|---|---|
| Distortion factor THD-I in % | Yes |
| Positive, negative and zero system | Yes |
| Sequence-of-events recorder function | Yes |
Measuring Current Input
| Current-measuring channels | 3 |
|---|---|
| Harmonics, per order / current | 1.-25., odd |
| Rated current | 1 / 5 A |
| Distortion factor THD-I in % | Yes |
|---|---|
| Measuring accuracy for current | 0.2 % |
| Residual current measuring | No |
Inputs/Outputs
| Temperature input | No |
|---|
Classifications
| ETIM 6.0 | EC002301 |
|---|---|
| eClass 9.0 | 27-14-23-30 |
| eClass 10.0 | 27-14-23-30 |
| ETIM 7.0 | EC002301 |
|---|---|
| eClass 9.1 | 27-21-03-01 |
| UNSPSC | 39-12-15-35 |
Measuring Voltage Input
| Distortion factor THD-U in % | Yes |
|---|---|
| Harmonics, per order / voltage | 1.-25., odd |
| Measurement range, voltage L-N, AC | 277 V |
| Quadrants | 4 |
| Four-wire system | Yes |
|---|---|
| Measurement range, voltage L-L, AC | 480 V |
| Measuring accuracy for voltage | 0.2 % |
| Three-wire system | No |
Technical Data
| Standards | DIN EN 61000-4-2, DIN EN 61000-4-3, DIN EN 61000-4-4, DIN EN 61000-4-5, DIN EN 61000-4-6, EN 55011, IEC 61010-2-030, IEC 61010-1, IEC 61326-1, DIN EN 61326-1 |
|---|---|
| Measurement range, voltage L-L, AC | 480 V |
| Three-wire system | No |
| Quadrants | 4 |
| Continuous measurements | Yes |
| Measurement result per second | 5 |
| Measuring accuracy for voltage | 0.2 % |
| Measurement accuracy for active energy (kWh, …/5 A) | Class 0.5S |
| Weekly time switch | No |
| Clock | Yes |
| Measurement range, voltage L-N, AC | 277 V |
|---|---|
| Surge voltage category | 300 V CAT III |
| Four-wire system | Yes |
| Sampling frequency 50/60 Hz | 5.4 kHz |
| Effective value from the period (50/60 Hz) | 10 / 12 |
| Residual current measuring | No |
| Measuring accuracy for current | 0.2 % |
| Operating-hours counter | Yes |
| Current-measuring channels | 3 |
| Bimetal function | Yes |
Insulation Coordination
| Surge voltage category | 300 V CAT III |
|---|
Temperatures
| Humidity at operating temperature | 5…95 % RH |
|---|---|
| Operating temperature, min. | -25 °C |
| Storage temperature, min. | -20 °C |
| Storage temperature | -20 °C...70 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | -25 °C...60 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E469563 |
|---|
