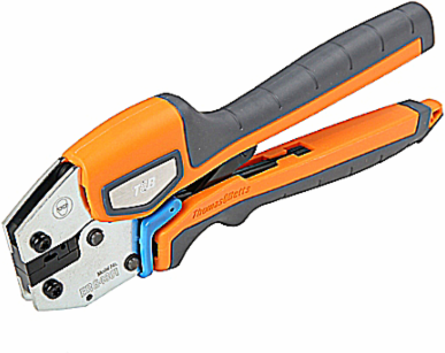

Dragon Tooth ERG4801 Manual Crimp Tool
- MPN: ERG4801
- UPC: 786209994394
- PPN: T-B-ERG4801
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Ergonomic Hand Tool for Crimping 22F, L, R-1 Series Terminals
Features
- Shure-Stake mechanism ensures a complete crimp cycle before the tool releases.
- Crimping Dragon Tooth terminal for magnet wire.
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC000168 Crimp tool cable lugs, cable end sleeves, screen connection
- Compression shape
- Square compression
- AWG-range
- 24-16
- With locking device (for mechanical tools)
- Y
- Inserts exchangeable
- N
Suitable forCable lugs and connectors
Cross section.2047-1.31mm²
Length257.302mm
Construction/operationMechanical
With automatic returnY
Packaging
- Outer Quantity
- 1
- Weight Uom
- 125 lbs. per 100
Outer Dimensions (inches)13.78x14.57x21.65
North American Specifications (UNSPSC)
- UNSPSC
- 27111518 Wire lug crimping tool
- Brand Name
- Dragon Tooth
- Special Features
- Shure-Stake mechanism ensures a complete crimp cycle before the tool releases.
IGCC1967 Wire lug crimping tool
TypeManual Crimp Tool
ApplicationCrimping Dragon Tooth terminal for magnet wire.
