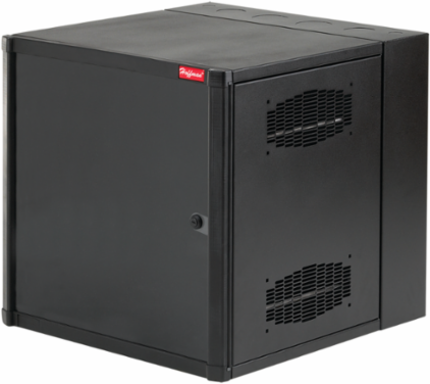

Nvent Hoffman EWMS242418 AccessPlus 24x24x18 Inch Double-Hinge Solid Steel Cabinet, Black
Nvent Hoffman EWMS242418 AccessPlus 24x24x18 Inch Double-Hinge Solid Steel Cabinet, Black
- MPN: EWMS242418
- UPC: 783510178734
- PPN: HOF-EWMS242418
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1149.08/ EA
Description
AccessPlus Cabinets provide security, equipment access, cooling and 19in rack-mnt equipment support. This AccessPlus Double-Hinge Type 1 solid, EWMS242418 item measures 24x24x18 inch with a material of Steel colored Black.
Features
- Double-hinged for easy equipment access; center section provides 19-in. rack mounting per EIA universal spacing and is accessed through the front door or swing the center section away from the wall section for rear access
- Front door has either a solid steel or hardened, tinted safety-glass window door for superior scratch resistance
- Center section easily removed from rear section; tool-less one person installation possible
- Self-grounding, plated steel rack angles fully adjustable within center section
- Wall section provides cable entry and cable management with knockouts or gland plates
- Gland plate model provides easy retrofit and fast installation and allows for pre-terminated cables or pre-wired patch panels; no need to re-terminate and test
- Self-locking center-to-wall section latches in two locations
- Front access to all latches (no exposed side latches); cabinet can be installed tightly in corners
- Vented sides provide cross flow ventilation to improve heat dissipation
- Vertical cable manager included in 28-in.-wide models
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Protection Rating
- NEMA Type 1
- Color Code
- RAL 9005
- Rack Units
- 12
- IP Rating
- IP20
- Sub Brand
- AccessPlus
- Width
- 23.62 in
- Material
- Steel
- Color
- Black
Height (H)600
Depth (D)462
Product FamilyAccessPlus
Thickness (T)1.9
Load Capacity250
Weight150
Height23.62 in
Depth18.2 in
FinishBlack
NEMA Rating1 Indoor, electrical protection
