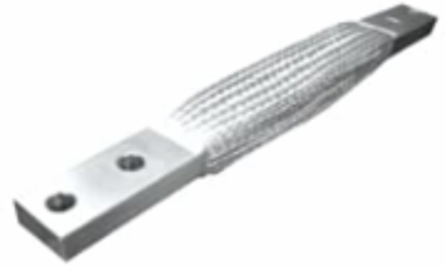

Blackburn EXB110A1610 Extra Flexible Tinned Copper Braid Connector, 2-Hole NEMA Pad, 24 Inch Long
- MPN: EXB110A1610
- UPC: 075114169776
- PPN: T-B-EXB110A1610
- UNSPSC: 39121465
CAD
$546.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tinned Copper, Extra Flexible Braid Connector, EXB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 24 inch (610 mm) long, 1-1/2 inch (38.1 mm) wide, 3/8 inch (9.5 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 4 Braids in Assembly. 36 AWG Individual Strand.
Specifications
Additional Information
| Application | Suitable wherever it is necessary to take up expansion, severe vibration and/or misalignment when connecting Transformers, Switchgear, Generators or Busbars. |
|---|---|
| Cable Length | 610 mm |
| Conductor Shape | Flat |
| Material of Conductor | Tin-Plated Copper |
| Product Type | Extra Flexible Braid Connector - 2-Hole |
| Standards | IEEE/ANSI C37.34 |
| Brand / Label | Boreal |
|---|---|
| Conductor Category | Very Flexible |
| Effective Date | 20140407 |
| Product Name | ELECTRICAL FLEX BRAID |
| Special Functions | Extra Flexible Braid, 2-Hole NEMA Pad |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4695 >> Flexible braid |
|---|
