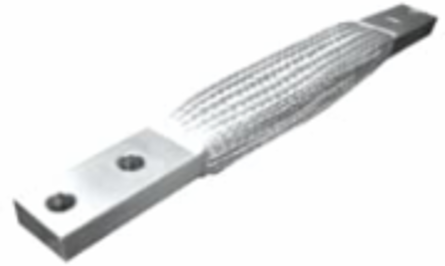

Blackburn EXB150A1304 Extra Flexible Braid Connector 12 Inch Long, 2-Hole NEMA, Tin-Plated Copper
- MPN: EXB150A1304
- UPC: 075114374538
- PPN: T-B-EXB150A1304
- UNSPSC: 39121465
CAD
$618.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tinned Copper, Extra Flexible Braid Connector, EXB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 12 inch (304 mm) long, 1-1/2 inch (38.1 mm) wide, 1/2 inch (12.7 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 6 Braids in Assembly. 36 AWG Individual Strand.
Specifications
Additional Information
| Application | These highly flexible connectors are suitable wherever it is necessary to take up expansion,severe vibration and/or misalignment when connecting Transformers, Switchgear, Generators or Busbars. |
|---|---|
| Cable Length | 12 in |
| Conductor Shape | Flat |
| Material of Conductor | Tin-Plated Copper |
| Product Type | Extra Flexible Braid Connector - 2-Hole |
| Brand / Label | Boreal |
|---|---|
| Conductor Category | Very Flexible |
| Effective Date | 20180611 |
| Product Name | ELECTRICAL FLEX BRAID |
| Special Functions | 2 holes NEMA, Extra-Flexible braided connectors using 36 AWG individual wires in braid construction for extra flexibility. These connectors are made with tin or silver plated high-conductivity 99.9% pure copper ferrules formed on each end. Individual wires used in braid are tinned prior to weaving so that maximum protection from corrosion is provided. |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4695 >> Flexible braid |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
