Blackburn EXH140A1254 Extra Flexible Braid Connector, 10 Inch Long, 4-Hole NEMA Pads
- MPN: EXH140A1254
- UPC: 075114105897
- PPN: T-B-EXH140A1254
- UNSPSC: 39121465
CAD
$385.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

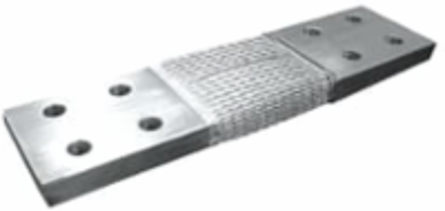

Tinned Copper, Extra Flexible Braid Connector, EXH Series, 4-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 10 inch (254 mm) long, 3 inch (76 mm) wide, 1/4 inch (6.4 mm) thick. Pad 3 inch x 3 inch. 4 Braids in Assembly. 36 AWG Individual Strand.
Specifications
Additional Information
| Application | Suitable wherever it is necessary to take up expansion, severe vibration and/or misalignment when connecting Transformers, Switchgear, Generators or Busbars. Extra-Flexible Links for Heavy-Duty Applications. |
|---|---|
| Cable Length | 254 mm |
| Conductor Shape | Flat |
| Material of Conductor | Tin-Plated Copper |
| Product Type | Extra Flexible Braid Connector - 4-Hole |
| Standards | IEEE / ANSI C37, 34 |
| Brand / Label | Boreal |
|---|---|
| Conductor Category | Flexible |
| Effective Date | 20130715 |
| Product Name | FLEX BRAID |
| Special Functions | 4 Hole Nema Pads |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4695 >> Flexible braid |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
