Blackburn EXB070A1304 Extra Flexible Braid Connector 12 Inch 2-Hole NEMA Pads, Tin-Plated Copper
- MPN: EXB070A1304
- UPC: 075114405560
- PPN: T-B-EXB070A1304
- UNSPSC: 39121465
CAD
$275.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

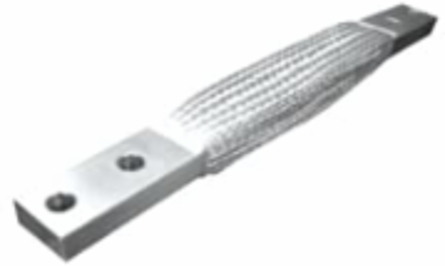

Tinned Copper, Extra Flexible Braid Connector, EXB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 12 inch (304 mm) long, 1-1/2 inch (38.1 mm) wide, 1/4 inch (6.3 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 2 Braids in Assembly. 36 AWG Individual Strand.
Specifications
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| IDEA Granular Category Code (IGCC) | 4695 >> Flexible braid |
|---|
Additional Information
| Application | Suitable wherever it is necessary to take up expansion, severe vibration and/or misalignment when connecting Transformers, Switchgear, Generators or Busbars. Extra-Flexible Links for Heavy-Duty Applications. |
|---|---|
| Cable Length | 304 mm12 in |
| Conductor Shape | Flat |
| Material of Conductor | Tin-Plated Copper |
| Product Name | ELECTRICAL FLEX BRAID |
| Special Functions | 2 Hole Nema Pads |
| Brand / Label | Boreal |
|---|---|
| Conductor Category | Flexible |
| Effective Date | 20191106 |
| Product Main Type | BOREAL FLEXIBLE BRAID CONNECTORS |
| Product Type | Extra Flexible Braid Connector - 2-Hole |
| Standards | IEEE / ANSI C37, 34 |
