Schmersal

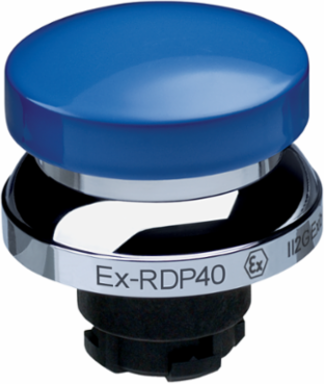

Schmersal 101193562 EX Command Mushroom Push Button 4 mm Actuating Stroke, 125 g

EX Command Mushroom Push Button 4 mm Actuating Stroke, 125 g
EX Command Mushroom Push Button 4 mm Actuating Stroke, 125 g
  • MPN: 101193562
  • PPN: SCM-101193562

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$213.23/ EA

Features

  • Mushroom button
  • Ex-Zone 1 and 21

Specifications

Explosion protection

Explosion protection: regulations
EN IEC 60079-0 | EN IEC 60079-11 | EN IEC 60079-31 | EN IEC 60079-14
Explosion protection category
2D | 2G
Explosion protection zones22 | 2 | 1 | 21
Explosion protection designationII 2G Ex ib IIC Gb | II 2D Ex ib IIIC Db

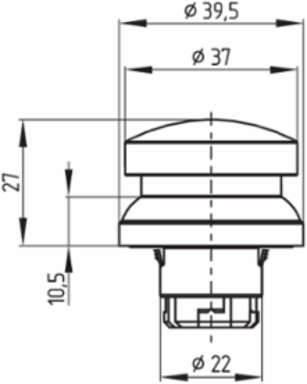

Mechanical data - Dimensions

Mounting diameter
22.3 mm
Thickness of the front panel, maximum6 mm

Safety classification - Safety outputs

B
100,000 Operations

General data

Standards
EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-5
Material of the identification label
Stainless steel (V4A)
Gross weight
125 g
DesignRound
Material of the front ringAluminium

Safety classification

Mission time
20 Year(s)

Mechanical data

Actuating stroke
4 mm

Approvals - Standards

Certificates
TÜV | IEC Ex

Downloads
