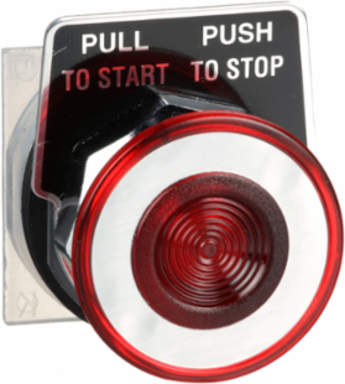

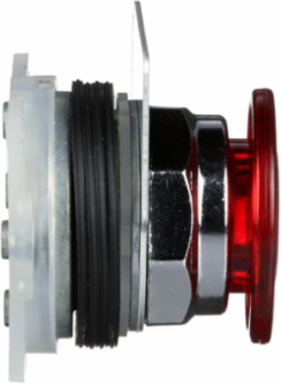

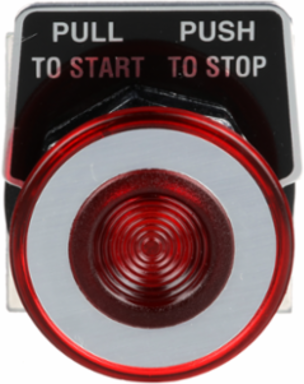

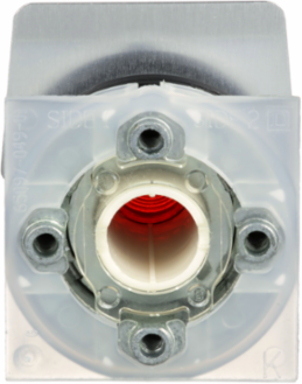

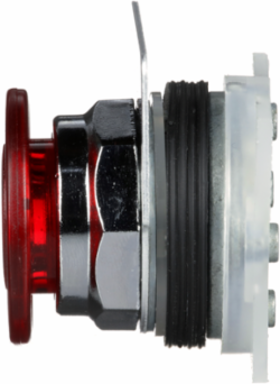

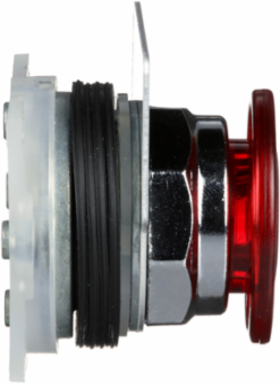

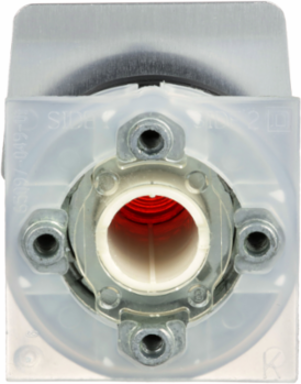

Schneider Electric 9001KR9R Harmony 9001K Red Mushroom Push Button Head, 41mm, 2 Positions, Metal
- MPN: 9001KR9R
- UPC: 785901320128
- PPN: SCH-9001KR9R
CAD
$166.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 9001K Red Mushroom Push Button Head, 41mm, 2 Positions, Metal
Features
- Featuring a precise stay-put mechanism, this switch locks securely into the engaged position when pushed and holds the circuit open until intentionally pulled back out. This reliable maintained action is crucial for safety-critical Emergency Stop (E-Stop) circuits, guaranteeing heavy machinery cannot unexpectedly restart and protecting your operators from hazardous mechanical movements.
- The oversized, brightly colored ergonomic cap ensures immediate visual identification and fail-safe actuation, even from a distance or by a worker wearing thick protective gloves. This highly accessible profile minimizes critical reaction times during process faults, drastically improving overall operational safety on busy, fast-paced shop floors.
- Supplied as a universal head-only module, it effortlessly accepts standard Schneider Electric Harmony screw-terminal contact blocks to fit your precise electrical needs. This plug-and-play physical compatibility significantly speeds up custom motor control center (MCC) panel builds and simplifies routine maintenance retrofits without the headache of sourcing specialized mounting adapters.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0613420810081444, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0008368806862385265, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-30
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- metal
- Contacts Type And Composition
- without contact block
- Mounting Diameter
- 30 mm
- Operator Position Information
- 2 positions
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony 9001K
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- Yes
- Type Of Operator
- push-pull
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 49
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.24912726264299626
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.6 kg CO2 eq., 0.618863568326521
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility Code9001K
Device Short Name9001K
Operator Additional Informationscrew-on plastic
Operator Profilemushroom Ø 41 mmred flush
Product Or Component Typehead for push-button
ReturnabilityYes
Software Versionv6.2.4
Total Lifecycle Carbon Footprint0.9 kg CO2 eq.
Pep CodeENVPEP2503027EN
Pep Verification Date2025-03-26
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Cap/Operator Or Lens Colourred
Package Weight(Lbs)113.400 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.9301697926639002
- Environmental Disclosure
- ENVPEP2503027EN
- Ip Degree Of Protection
- IP65/IP66
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-03-26
- Psr Version
- PSR-0005-ed3-2023 06 06
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2503027EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 3R/4/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for push-button
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
