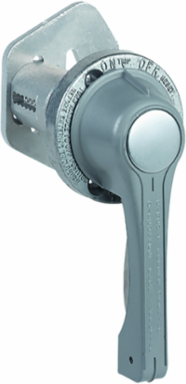

Killark EXH3E10 4 Pole 1200 Amp Circuit Breaker Handle in 10 Inch Deep Box, NEMA 3-4-4X
- MPN: EXH3E10
- UPC: 783936118598
- PPN: HBL-EXH3E10
- UNSPSC: 39121321
CAD
$4201.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
EXH Series,4 Pole 1200 Amp Frame Breaker In 10" Deep Boxes Class I, II, III, CDEFG, UL/CSA, 316 SS Shaft, Cast Alum Handle Type 4X IP66, Circuit Breaker Handle
Features
- Circuit breaker handle.
- Factory or field installed in a 1-1/4” NPSM opening.
- Has provision for Lock-On and Lock-Off with up to three padlocks.
- Consists of an external handle mechanism with through-the-enclosure shaft, internal toggle mechanism, and universal breaker pan.
- Copper free aluminum with 316 stainless steel shaft and sprongs.
- O-ring 70 durometer nitrile.
- Extruded aluminum bodies, stainless steel pins and stainless steel hardware.
- Factory or field installed in a 1-1/4" NPSM opening. Has provision for Lock-On and Lock-Off with up to three padlocks. Consists of an external handle mechanism with through-the-enclosure shaft and internal toggle mechanism and breaker pan.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Length | 16.125 in |
| Color | Gray |
| Special Features | Factory or field installed in a 1-1/4" NPSM opening. Has provision for Lock-On and Lock-Off with up to three padlocks. Consists of an external handle mechanism with through-the-enclosure shaft and internal toggle mechanism and breaker pan. |
| Width | 9.375 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CIR BREAK HANDLE ASSEM 10"BOX |
| Harmonization Code | 8538908180 |
| Lead Time | 15 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D252 |
| Gross Weight with Packaging | 8 |
| Material | Copper-free aluminum |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936118598 |
| NAICS Code | 3353147100 |
| Dimensions | 16.125 in x 9.375 in x 10.5 in |
|---|---|
| Height | 10.5 in |
| Application | For use with B7E, DB, EXB, XJB Series enclosures. Used to activate circuit breakers and motor circuit protectors from front cover. |
| Size | 16.125 in x 9.375 in x 10.5 in |
| Type | Replacement Handle |
| Nema Rating | 3, 4, 4X |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11714 |
| UL File Number | E150827 |
| Series | EXH Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
