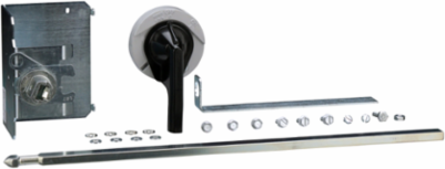

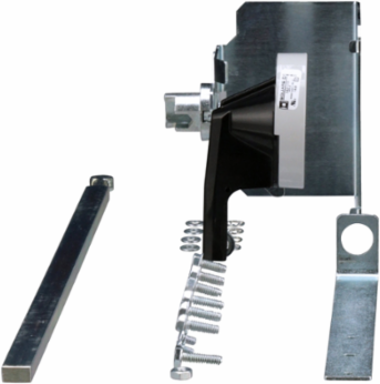

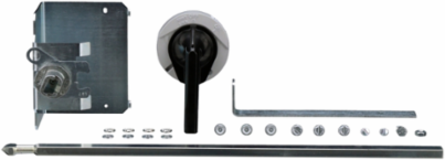

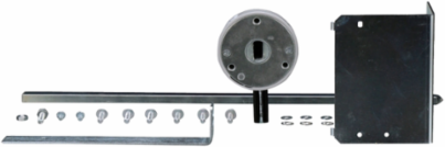

Square D 9421LJ3 PowerPacT H/J Rotary Handle Kit, 3 Inch, 150A-250A, 3 Pole

MPN: 9421LJ3
UPC: 785901958611
PPN: SCH-9421LJ3

$661.68

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed Mechanism will work with PowerPacT H and PowerPacT J and Compact NSF circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250A. Proper circuit breaker must be ordered separately. Kit contains a 3 inch long handle that is rated NEMA 1/3R/12. The kit contains a long shaft. The mounting depth of this kit is 5.5 to 21.38 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Kit is UL component recognized and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	9421L
Shaft Type	long
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Halogen-free Status	Halogen free plastic parts product
Package Weight(Lbs)	3.683 kg
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Local Publishable Date	2026-06-27
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1848
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Product Or Component Type	Circuit Breaker Mechanism
Returnability	Yes
Sustainable Packaging	No
Length Total	6 in
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908120

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Halogen Content Performance	Halogen free plastic parts product
Packaging Without Single Use Plastic	No
Reach Free Of Svhc	Yes

Take Back	No
Halogene Performance	Halogen free plastic parts product
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Product Compatibility	NEMA 1/3R/12 enclosure
Reach Regulation	Free of Substances of Very High Concern above the threshold
