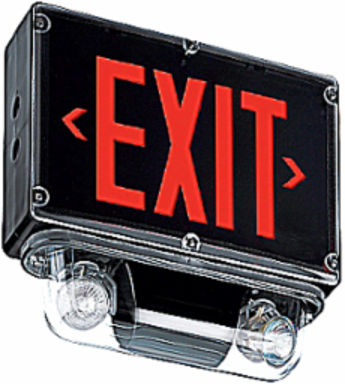

Lumacell 3LER35002LD1GAZCATCW Exit Combination Unit
- MPN: 3LER35002LD1GAZCATCW
- UPC: 624616295812
- PPN: T-B-3LER35002LD1GAZCATCW
CAD
$2251.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Exit Combination Unit, single face, 120/277VAC, auto-diagnostics, audible, cold-weather -40°C , Voltage DC: 6V, Battery Type: nickel-cadmium, Battery Wattage: 36W, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 6V, Lamp Wattage: 4W, Housing Colour: grey, Faceplate Colour: aluminum, audible, Legend Colour: red, Unit Type: NEMA-4X & NSF, Head Style: shielded, Battery Run Time: 30 minutes
Features
- NSF for food processing
- Shieled by a clear polycarbonate cover
- Continuous self-diagnostic monitoring and monthly self-testing
- Fully automatic charger is solid state
- Non-intrusive magnetic test switch
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39111707 Combo light unit exit |
|---|---|
| Brand Name | Lumacell |
| Special Features | Comes standard with tamper proof screws |
| Standard | CSA |
| Voltage Rating | 120/277VAC, 6VDC |
| Battery | Nickel-cadmium |
| Number Of Lamps | 2 |
| Letter Color | Red |
| Size | 12-5/8 Inches Height x 14 Inches Width |
| Mounting | Universal |
| Color | Aluminum |
| IGCC | 3938 Combo light unit exit |
|---|---|
| Type | Exit Combination Unit |
| Application | Institutional, Industrial, Hospitality |
| Wattage | 36W |
| Battery Runtime | 30 minutes |
| Lamp Type | MR16 LED |
| Housing Color | Grey |
| Legend | On |
| Material | Frame: Polyvinyl chloride / Faceplate: Polycarbonate |
| Environmental Conditions | Cold weather -40 degree C (-40 degree F) |
| Lamp Wattage | 4W |
European Specifications (ETIM)
| ETIM | EC001957 Emergency luminaire |
|---|---|
| Lamp power | 4W |
| Colour housing | Grey |
| Voltage type | AC/DC |
| Width | 357mm |
| Lamp type | LED exchangeable |
|---|---|
| Material housing | Other |
| Battery quality | NiCd |
| Nominal voltage | 120-277V |
| Height/depth | 321mm |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Quantity | 4 |
| Weight Uom | 11 lbs. Each |
| Inner Dimensions (inches) | 1x1x.1 |
|---|---|
| Outer Dimensions (inches) | 1x1x1 |
