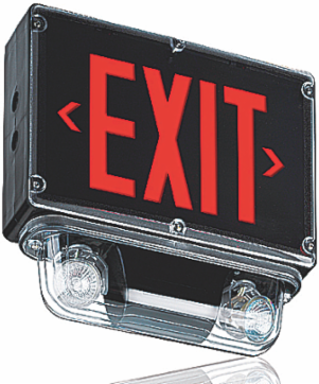

Light Alarm WWXV12E1RD4X/2LD1 Exit Combination Unit
- MPN: WWXV12E1RD4X/2LD1
- UPC: 784170127711
- PPN: T-B-WWXV12E1RD4X/2LD1
CAD
$1236.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Exit Combination Unit, Battery Type: nickel-cadmium, Battery Wattage: 12W, Voltage DC: 6V, 120/277VAC, self-powered, single face, Housing Colour: white, Faceplate Colour: white, Legend Colour: red, diagnostics, non-audible, Unit Type: wet/damp locations, Head Style: shielded, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 6V, Lamp Wattage: 4W, Spec Grade: industrial, Battery Run Time (Minimum): 90 minutes
Features
- Backplate features universal knockouts for a standard 4 inch junction box, used in wall mount applications
- Frame includes 1/2 inch conduit knock-out entry on top and sides.
- Faceplate includes two field-selectable, knock-out chevron indicators
- Red or Green Long-Life Light Emitting Diodes (LED) illumination
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111707 Combo light unit exit
- Brand Name
- Lightalarms
- Application
- Industrial
- Wattage
- 12W
- Battery Runtime
- 90 minutes
- Lamp Type
- MR16 LED
- Housing Color
- White
- Background Color
- White
- Size
- 12-5/8 Inches Height x 13-1/4 Inches Width x 3-7/16 Inches Depth
- Mounting
- Surface
IGCC3938 Combo light unit exit
TypeExit Combination Unit
StandardUL
Voltage Rating120/277VAC, 6VDC
BatteryNickel-cadmium
Number Of Lamps2
Letter ColorRed
LegendOn
MaterialFaceplate: polycarbonate, Backplate: aluminum
Lamp Wattage4W
European Specifications (ETIM)
- ETIM
- EC001957 Emergency luminaire
- Lamp power
- 4W
- Colour housing
- Grey
- Voltage type
- AC/DC
- Width
- 336.5mm
Lamp typeLED exchangeable
Material housingOther
Battery qualityNiCd
Nominal voltage120-277V
Height/depth320.7mm
Packaging
- Outer Quantity
- 1
- Weight Uom
- 11 lbs. Each
Outer Dimensions (inches)1x1x1
