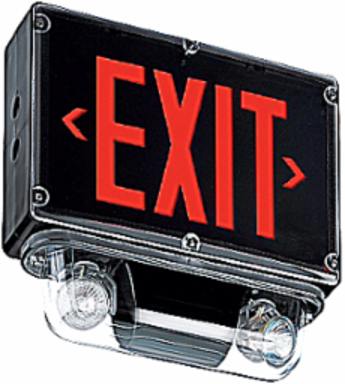

Lumacell 5LER35002LD9WHAT Exit Combination Unit
- MPN: 5LER35002LD9WHAT
- UPC: 624616295218
- PPN: T-B-5LER35002LD9WHAT
CAD
$1833.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Exit Combination Unit, single face, 120/347VAC, auto-diagnostics, audible, Voltage DC: 12V, Battery Type: nickel-cadmium, Battery Wattage: 60W, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 5W, Housing Colour: white, Faceplate Colour: white, audible, Legend Colour: red, Unit Type: NEMA-4X & NSF, Head Style: shielded, Battery Run Time: 30 minutes
Features
- NSF for food processing
- Shieled by a clear polycarbonate cover
- Continuous self-diagnostic monitoring and monthly self-testing
- Fully automatic charger is solid state
- Non-intrusive magnetic test switch
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111707 Combo light unit exit
- Brand Name
- Lumacell
- Special Features
- Comes standard with tamper proof screws
- Standard
- CSA
- Voltage Rating
- 120/347VAC, 12VDC
- Battery
- Nickel-cadmium
- Number Of Lamps
- 2
- Letter Color
- Red
- Size
- 12-5/8 Inches Height x 14 Inches Width
- Mounting
- Universal
- Lamp Wattage
- 5W
IGCC3938 Combo light unit exit
TypeExit Combination Unit
ApplicationInstitutional, Industrial, Hospitality
Wattage60W
Battery Runtime30 minutes
Lamp TypeMR16 LED
Housing ColorWhite
LegendOn
MaterialFrame: Polyvinyl chloride / Faceplate: Polycarbonate
ColorAluminum
European Specifications (ETIM)
- ETIM
- EC001957 Emergency luminaire
- Lamp power
- 5W
- Colour housing
- White
- Voltage type
- AC/DC
- Width
- 357mm
Lamp typeLED exchangeable
Material housingOther
Battery qualityNiCd
Nominal voltage120-347V
Height/depth321mm
Packaging
- Outer Quantity
- 1
- Weight Uom
- 13 lbs. Each
Outer Dimensions (inches)1x1x1
