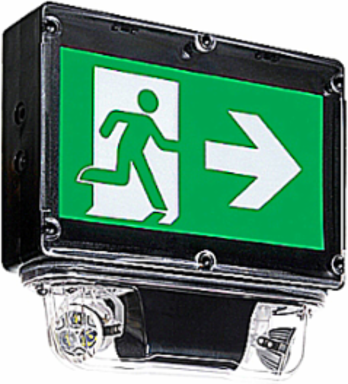

Lumacell LNC2W12N60LD10AT Pictogram Combination Unit

MPN: LNC2W12N60LD10AT
UPC: 624616347511
PPN: T-B-LNC2W12N60LD10AT

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2266.67/ EA

Qty:

Loading add to cart quantity...

Description

Pictogram Combination Unit, double face, universal mount, Arrows/Chevron Direction: standard film, Colour: factory white, 120/347VAC, diagnostics, audible, Unit Type: NEMA-4X & NSF, Battery Type: nickel-cadmium, Voltage DC: 12V, Battery Wattage: 60W, Head Style: shielded, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 6W, Battery Run Time (Minimum): 30 minutes

Features

Sealed, vandal-resistant faceplate of polycarbonate
Legend illuminated by long-life white LED’s is warrantied for 10 years
Comes standard with two pictogram films per face, for direction selection
Two high-performance MR16 lamps shielded by a clear polycarbonate cover
Remote load capacity: covers with 4W LED lights 100 feet up to 230 feet of egress illumination

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39111707 Combo light unit exit

Brand Name: Lumacell

Application: Institutional, Industrial, Hospitality

Wattage: 60W

Battery Runtime: 30 minutes

Lamp Type: MR16 LED

Legend: On

Material: Frame: Polyvinyl chloride / Faceplate: Polycarbonate

Color: Factory white

IGCC3938 Combo light unit exit

TypePictogram Combination Unit

StandardCSA

Voltage Rating120/347VAC, 12VDC

BatteryNickel-cadmium

Number Of Lamps2

Size12-5/8 Inches Height x 14 Inches Width

MountingUniversal

Lamp Wattage6W

European Specifications (ETIM)

ETIM: EC001957 Emergency luminaire

Lamp power: 6W

Colour housing: Black

Voltage type: AC/DC

Width: 357mm

Lamp typeLED exchangeable

Material housingOther

Battery qualityNiCd

Nominal voltage120-347V

Height/depth321mm

Packaging

Outer Quantity: 1

Weight Uom: 14 lbs. Each

Outer Dimensions (inches)1x1x1
