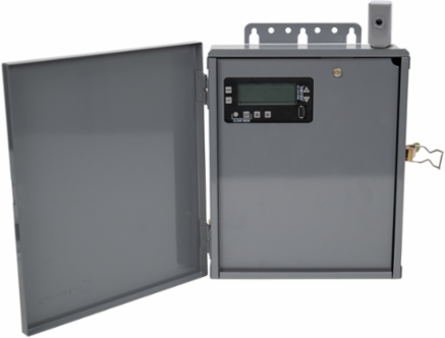

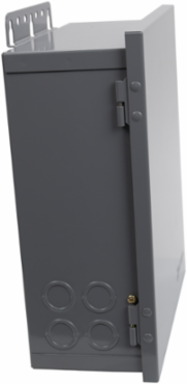

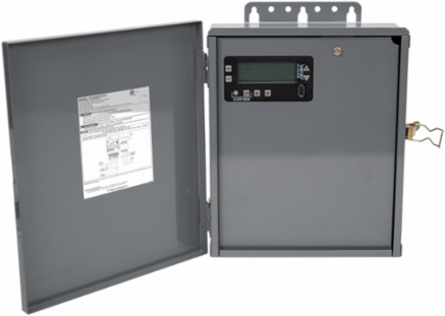

Intermatic ETCB28254PCR Expanded 4-Pole Lighting Contractor Box, 120 - 600 VAC, 60 Hz, 4PST, Outdoor Metal Enclosure
- MPN: ETCB28254PCR
- UPC: 078275159181
- PPN: INT-ETCB28254PCR
- UNSPSC: 39122208
CAD
$1002.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

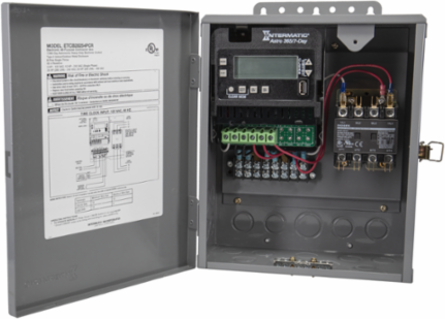

The ETCB28254PCR Expanded 4-Pole lighting contractor box provides an easy-to-install solution for a variety of application needs. The contractor box comes with a pre-installed astronomic timer with 7-day, holiday/exception period scheduling, USB for schedule transfer and backup, an electrically held 40 A contactor, as well as inputs for overrides and surge protective devices.
Features
- 7-Day/365-day astronomic scheduling.
- Up to 96 scheduling set points.
- Up to 50 holiday/exception period set points.
- USB port for backing up or transferring schedules.
- Built-in 40 A, 4-pole contactor for more robust loads.
- Input for optional "timed" photo control override.
- Input for other types of switches/sensors.
- Terminals for adding surge protection.
- 100-hour supercapacitor eliminates the need for battery replacement.
- Requires 120 VAC, 60 Hz for powering the control.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage Rating Range(s)
- 120 VAC, 60 Hz
- Color
- Gray
- Marketing Description
- The ETCB28254PCR Expanded 4-Pole lighting contractor box provides an easy-to-install solution for a variety of application needs. The contractor box comes with a pre-installed astronomic timer with 7-day, holiday/exception period scheduling, USB for schedule transfer and backup, an electrically held 40 A contactor, as well as inputs for overrides and surge protective devices.
- Width
- 10 in
- Country of Origin
- Mexico
Warranty Period2-Year limited
ApplicationsIndoor Lighting Control;Machinery & Pump Controls;Outdoor Lighting Control;Timing/Scheduling ON/OFF;Motor Control
Height11.75 in
Depth4.75 in
