Tripp Lite BP36V42-3U External 36V 3U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP36V42-3U)
Tripp Lite BP36V42-3U External 36V 3U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP36V42-3U)
- MPN: BP36V42-3U
- UPC: 037332123312
- PPN: TRP-BP36V42-3U
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3840.84/ EA
Description

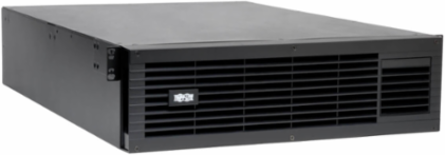

External 36V 3U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP36V42-3U)
Features
- Extends the runtime of expandable 36V DC Tripp Lite UPS Systems
- Included daisychain connector supports the addition of multiple compatible external battery packs
- Supports 3U rackmount installation; 4 post installation accessories included
- Options for 2 post rackmount and tower installation available
- 2-year limited warranty
Specifications
Battery
- Expandable Battery Runtime
- Includes a second input/output connector to daisy-chain multiple battery packs
- UPS Connection

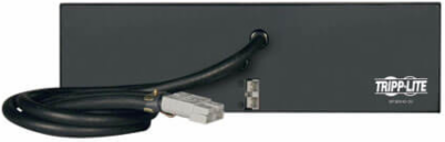

- Detachable cable with UPS specific DC connector (36 in length, 6 gauge)
- Expandable Runtime
- Yes
DC System Voltage (VDC)36
Typical Battery Lifespan4-6 years typical (North America)
Physical
- External Battery Pack Form Factor
- Rack/Tower
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Material of Construction
- Steel
- Optional Mounting Accessory Notes
- 2POSTRMKITWM enables wall-mount and 2-post rackmount installation
- Shipping Weight (lbs.)
- 185.00
- Unit Weight (lbs.)
- 174.1
Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Installation Form Factors Supported with Optional Accessories2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM)
Minimum Required Rack Depth (inches)31.5
Shipping Dimensions (hwd / in.)12.00 x 23.00 x 33.00
Unit Dimensions (hwd / in.)5.25 x 17.5 x 25
Input
- Input Phase
- Single-Phase
Overview
- UPC Code
- 037332123312
Warranty
- Product Warranty Period (U.S. & Canada)
- 2-year limited warranty
Downloads
