Tripp Lite BP24V70-3U External 24V 3U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP24V70-3U)
Tripp Lite BP24V70-3U External 24V 3U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP24V70-3U)
- MPN: BP24V70-3U
- UPC: 037332123305
- PPN: TRP-BP24V70-3U
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3608.15/ EA
Description

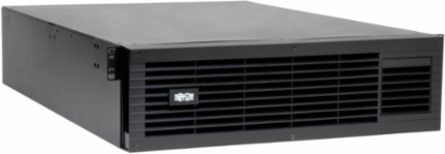

External 24V 3U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP24V70-3U)
Features
- Extends the runtime of expandable 24V DC Tripp Lite UPS Systems
- Included daisychain connector supports the addition of multiple compatible external battery packs
- Supports 3U rackmount installation; 4 post installation accessories included
- Options for 2 post rackmount and tower installation available
- 2-year limited warranty
Specifications
Battery
- DC System Voltage (VDC)
- 24
- Typical Battery Lifespan
- 4-6 years typical (North America)

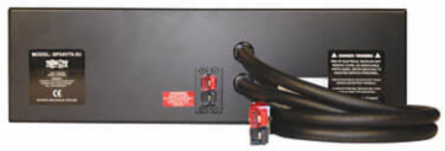

UPS ConnectionAttached cable with red/black 75 amp male DC connector
Physical
- External Battery Pack Form Factor
- Rack/Tower
- Installation Form Factors Supported with Optional Accessories
- 2 post rackmount (2POSTRMKITWM); Tower (2-9USTAND)
- Minimum Required Rack Depth (inches)
- 28
- Shipping Weight (lbs.)
- 175.00
- Unit Weight (lbs.)
- 138.89
Installation Form Factors Supported with Included Accessories4 post 19 inch rackmount
Material of ConstructionSteel
Shipping Dimensions (hwd / in.)12.00 x 23.00 x 32.50
Unit Dimensions (hwd / in.)5.25 x 17.5 x 25
Input
- Input Phase
- Single-Phase
Overview
- UPC Code
- 037332123305
Warranty
- Product Warranty Period (U.S. & Canada)
- 2-year limited warranty
Downloads
