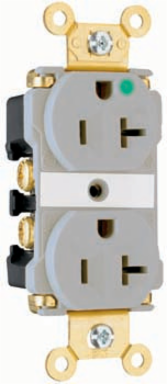

Pass & Seymour 8300ILGRY Extra Heavy Duty Hospital Grade LED Illuminated Receptacle, 20A 125V, Gray, 2.75 Inch Height
- MPN: 8300ILGRY
- UPC: 785007046007
- PPN: P-S-8300ILGRY
CAD
$85.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Extra Heavy Duty Hospital Grade LED Illuminated Receptacle, 20A 125V, Gray, 2.75 Inch Height
Features
- One-piece nickel-plated brass mounting strap with integral ground.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- Two drive screws anchor strap to back body and face.
- Exclusive patented feature, circuit label on face allows permanent circuit identification.
- .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and back body.
- Oversized #10 deep tri-drive head brass terminal and ground screws.
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
- Line terminals accept #14 - #10 AWG stranded or solid copper-clad conductors.
- Auto-ground clip assures positive ground.
- Illuminated version features exclusive LED lamp with solder connection for long durable life (10-12 years).
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.866 in
- Color
- Gray
- Product Line
- Pass & Seymour
- Amperage
- 20.0 A
- Standard
- FEDSPEC
- Features
- Illuminated
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Standard
- CSA C22.2 No. 42
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- Features
- Brass Mounting Strap
- Connection Location
- Back and Side
- Dielectric Strength
- Withstands 2000V minimum
- Environmental Conditions
- Flammability: UL94 V2 and UL94-5 VA
Height2.75 in
Width1.625 in
Country of OriginMexico
Voltage125.0 V
Number of Wires3.0
StandardcULus UL498
Wire Size14 - 10 AWG
Number of Receptacles2.0
Outlet TypeHospital Grade
Number of PolesDouble Pole
Application SectorHealthcare
NEMA Configuration Code5-20R
Warranty Type1-Year Limited Warranty
Wire Connection TypeInternal Pressure Plates
Special FeaturesIlluminated version features exclusive LED lamp with solder connection for long durable life (10-12 years). One-piece nickel-plated brass mounting strap with integral ground. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Two drive screws anchor strap to back body and face. Exclusive patented feature, circuit label on face allows permanent circuit identification. .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and back body. Oversized #10 deep tri-drive head brass terminal and ground screws. Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection. Line terminals accept #14 - #10 AWG stranded or solid copper-clad conductors. Auto-ground clip assures positive ground.
