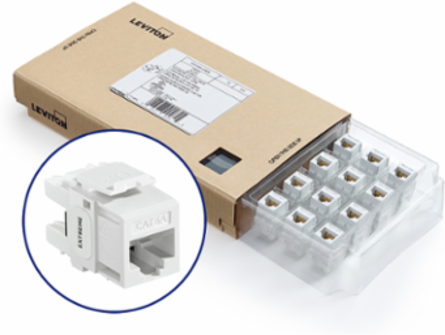

Leviton 6110G-CW6 EXTREME™ Cat 6A QUICKPORT™ Jack, Channel-Rated, White, GREENPACK™ 12-Pack (includes 12 jacks and 12 cones of silence)

EXTREME™ Cat 6A QUICKPORT™ Jack, Channel-Rated, White, GREENPACK™ 12-Pack (includes 12 jacks and 12 cones of silence)
  • MPN: 6110G-CW6
  • UPC: 078477902615
  • PPN: LEV-6110G-CW6

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$400.05/ EA

Description

The EXTREME Cat 6A Channel-Rated QUICKPORT copper jack is designed to be used with all QUICKPORT compatible products and features patented injection-molded Cone of Silence™ covers to eliminate alien crosstalk (AXT). The jack includes patented Retention Force Technology™ to promote consistent network performance over the life of the system. Unique Pair Separation Towers facilitate quick, easy terminations. The jack is configured in a 180-degree configuration such that the punch down field is in the back, allowing for rear termination

Features

  • Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
  • Terminates 26 AWG stranded conductors up to 5 times
  • Cat 6A/Class EA Channel Performance
  • Patented RFT protects against tine damage from 4- or 6-pin plugs
  • Jack contacts are tested for 3,000 plug-mating cycles to ensure system longevity
  • Alien crosstalk suppressed by Cone of Silence, metalized body, and new printed circuit board
  • Pair Separation Tower (PST) design facilitates separation of Cat 6A conductors
  • Easy to read wiring label simplifies punchdown
  • Select colors available in 12-Pack GREENPACK packaging that is fully recyclable
  • Select colors available in 200-Pack Sustainably Smart Packaging that uses no single-use plastic and is fully recyclable

Specifications

Product Features

Brand
EXTREME
Color
White
Product Family
Jacks
Termination Type
Punchdown
Category RatingCat 6A
PackagingGREENPACK 12-Pack
ShieldingUnshielded

Specifications

Country of Origin
United States
RoHS CompliantFalse

Downloads
