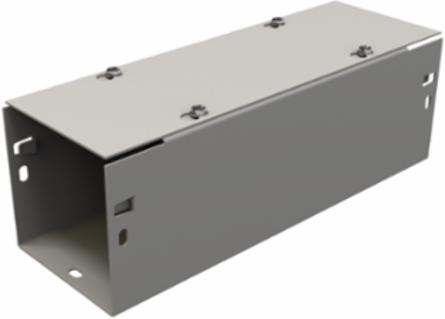

nVent Hoffman F44T160GVP Straight Section Lay-in Flat Cover Type 1, 4x4x60, Gray, Steel
nVent Hoffman F44T160GVP Straight Section Lay-in Flat Cover Type 1, 4x4x60, Gray, Steel
- MPN: F44T160GVP
- UPC: 783510360696
- PPN: HOF-F44T160GVP
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$121.69/ EA
Description
Layin Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs. This Straight Section Lay-in Flat-Cover Type 1 no KOs, F44T160GVP item measures 4x4x60 inch with a material of Steel colored Gray.
Features
- Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
- Sections are completely open on one side so wires and cables can be laid-in along run
- Lay-in design eliminates the action of pulling wires or cables, which can result in insulation damage
- Flat-cover design supports mounting flush with walls or ceilings
- Covers feature keyhole screw slots which simplify cover installation and removal, and limit risk of losing securing screws
- Sections available in lengths from 12 to 120 inches, with or without knockouts
- 4"x4" and 6"x6" Straight Sections re-designed with Snap Connect features for ease-of-installation; sections are backwards compatible if a legacy U-Connector is present
Specifications
Specifications
- BABA
- Contact Manufacturer
- Height (H)
- 102
- Depth (D)
- 1,524
- Material
- Mild Steel
- Color
- Gray
- Thickness (T)
- 1.52
- IP Rating
- IP30
- NEMA Rating
- 1 Indoor, electrical protection
TypeStraight Section
Width (W)102
Protection RatingNEMA Type 1
FinishPowder Coated
Color CodeANSI 61
Connection TypeSnap-in
WirewayLay-In NEMA Type 1 Painted Flat-Cover Wireway
Weight17
