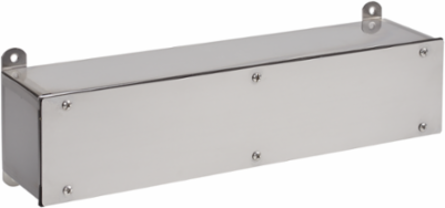

nVent Hoffman F6612SCSS Screw Cover Wiring Trough NEMA Type 4X, 6.00x6.00x12.00, Brushed, SS304
- MPN: F6612SCSS
- UPC: 783510305864
- PPN: HOF-F6612SCSS
CAD
$555.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Screw-Cover Wiring Trough used for outdoor corrosive applications when frequent access is not needed. This Screw Cover Wiring Trough NEMA Type 4X, F6612SCSS item measures 6.00x6.00x12.00 inches with a material of SS304 finish Brushed.
Features
- Seams continuously welded and ground smooth
- Oil-resistant gasket and adhesive
- Captivated stainless steel cover screw threaded into sealed walls
- No holes or knockouts
Documentation & Downloads
Specifications
Additional
| NEMA Rating | 4X Watertight, corrosion-resistant |
|---|---|
| Width | 153 mm (6.00 in.) |
| Depth | 305 mm (12.00 in.) |
| Material | 304 Stainless Steel |
| Body Thickness | 1.59 mm (16 gauge) |
| Cover Screw Quantity | 4 |
| Seams | Continuously welded and ground smooth |
| Wireway | Wiring Troughs |
| Standards Compliance | UL 870, cUL CSA C22.2 No. 26 & No. 94.2, IEC 60529 IP66 |
| Protection Rating | NEMA Type 12 |
|---|---|
| Height | 153 mm (6.00 in.) |
| Weight | 9.4 lbs |
| Finish | No. 2B brushed finish |
| Door Thickness | 2.78 mm (12 gauge) |
| Cover Screw | Captivated stainless steel threaded into sealed walls |
| Gasket | Oil-resistant gasket and adhesive |
| Type | Trough |
