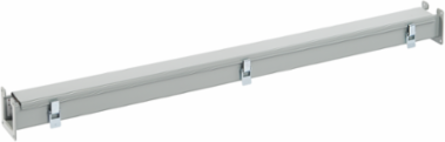

nVent Hoffman F66L48 Straight Section Lay-in Hinged Cover Type 12, 6.00x6.00x48.00, Gray, Steel
- MPN: F66L48
- UPC: 783510185206
- PPN: HOF-F66L48
- UNSPSC: 39131710
CAD
$563.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Lay-in Wireway for Type 12 with gasket and quick-release latches. This Straight Section Lay-in Hinged Cover Type 12, F66L48 item measures 6.00x6.00x48.00 inches with a material of Steel colored Gray.
Features
- Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants
- This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling
Documentation & Downloads
Specifications
Additional
| NEMA Rating | 12 Indoor, dust-resistant |
|---|---|
| Type | Straight Section |
| Dimensions | 6 in H x 6 in W x 48 in D (152 mm x 152 mm x 1219 mm) |
| Material | Steel |
| Color | Gray (ANSI 61) |
| Edge Finish | Smooth, rounded edges |
| Body and Cover Thickness | 14 gauge steel |
| Sealing Plate Type | Flat |
| Cover Type | Lay-in hinged cover |
| IP Rating | IP54 |
|---|---|
| Protection Rating | NEMA Type 12 |
| Weight | 29 lb |
| Finish | Painted Steel, gray polyester powder |
| Seams | Continuously welded and ground smooth |
| End Flanges Thickness | 10 gauge steel |
| Sealing Plate Quantity | 1 |
| Gasket | Oil-resistant gasket and adhesive |
| Latch Type | Quick-release |
