Weidmuller 8703470000 FBCON SS CG 8WAY
- MPN: 8703470000
- PPN: WDM-8703470000
CAD
$1703.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

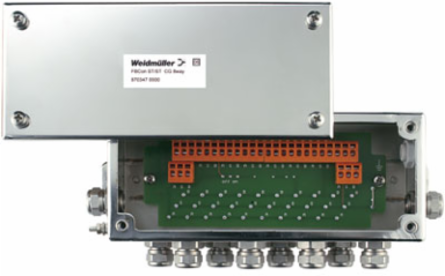

Standard distributor, 8-way distributor, IP66
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 175 mm |
|---|---|
| Width | 80 mm |
| Height | 58 mm |
| Net weight | 1,244 g |
| Length (inches) | 6.89 inch |
|---|---|
| Width (inches) | 3.15 inch |
| Height (inches) | 2.283 inch |
Classifications
| ETIM 6.0 | EC001604 |
|---|---|
| eClass 9.0 | 27-24-26-08 |
| eClass 10.0 | 27-24-26-08 |
| ETIM 7.0 | EC001604 |
|---|---|
| eClass 9.1 | 27-24-26-08 |
| UNSPSC | 26-12-16-03 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 80 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -40 °C...80 °C |
| Storage temperature | -40 °C...80 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Ambient temperature | -40 °C...80 °C |
