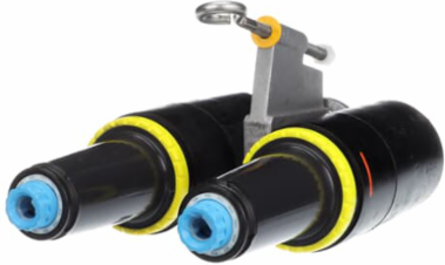

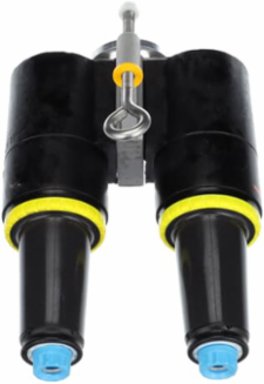

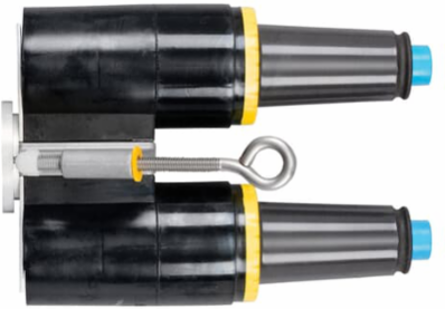

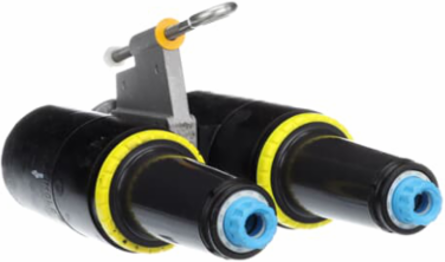

Thomas & Betts 274FT FEED-THRU 200A LB 25KV
- MPN: 274FT
- UPC: 783786359714
- PPN: T-B-274FT
- UNSPSC: 39121421
CAD
$742.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV 200 Amp, Loadbreak Feed-Thru
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Additional Information
| Application | Fully shielded, fully submersible insulated connector designed for energized operation. |
|---|---|
| Color | Black |
| Effective Date | 19980206 |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | PRIMARY CABLE ACC. 200 SEP CON |
| Size | 4 inch (101.6 mm) Center to Center, 6.63 inch (168.4 mm) width, 8.58 inch (218.0 mm) Height to Bushing Datum. |
| Standards | ANSI/IEEE Standard 386 |
| Brand / Label | Elastimold |
|---|---|
| Current Rating | 200 A |
| Includes | Feed-Thru Body, Protective Shipping Cap, Lubricant and Installation Instructions. |
| Material | Housing - EPDM Rubber |
| Product Type | Feed-Thru |
| Special Functions | 28kV, 200 Amp Loadbreak Rated. Uses integrated parking stand to mount. Provide extra tap for elbow arrester connection. Peroxide-cured insulation and jacket. Optional accessories allow by-pass, isolation, testing, and grounding. |
| Voltage Rating | 25 kV |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
