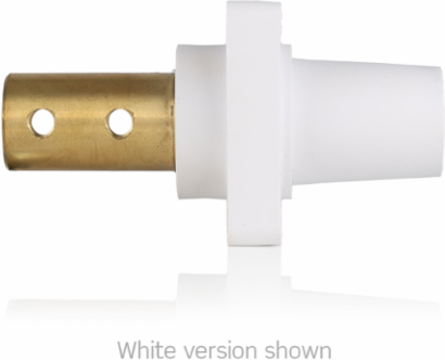

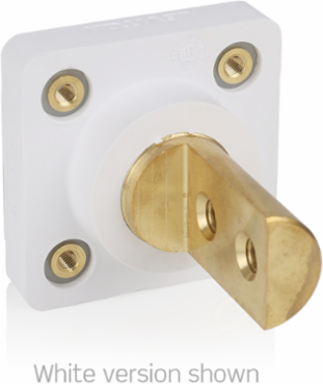

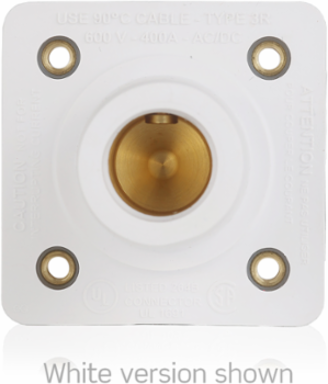

Leviton 16R34-1G 16 Series Female Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar, Self-Clinching Nuts

16 Series Female Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar, Self-Clinching Nuts - https://media.province-electric.com/476/csv_leviton/medium/8940fded26a3bb2d195118cb20527188edaaee3c-medium.png

16 Series Female Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar, Self-Clinching Nuts - https://media.province-electric.com/476/csv_leviton/medium/39743122e576f207b530e9afb1e07b7d7e99e5a7-medium.png

16 Series Female Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar, Self-Clinching Nuts

MPN: 16R34-1G
UPC: 078477022757
PPN: LEV-16R34-1G

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$59.39/ EA

Qty:

Loading add to cart quantity...

Description

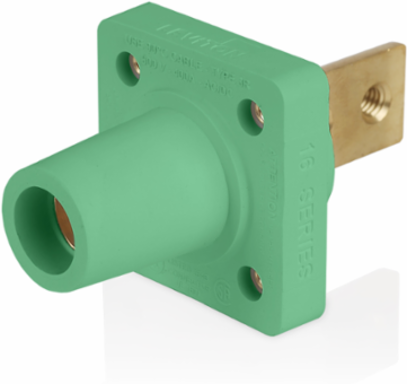

16 Series Taper Nose Cam-Type Female Panel Mount Receptacle, 90-Degree, #2-4/0 AWG, Double Hole Bus Bar, 400 Amp Max, 600 VAC/DC, Self-Clinching Nuts, Green

Features

NEMA 3R rated for outdoor use when mated
Color-coding provides fast and easy phase identification
Common applications: entertainment, data centers, power distribution, backup power, construction sites, disaster recovery and other temporary power applications

Specifications

Material Specifications

Contact: Brass

InsulatorsSantoprene TPV

Mechanical Specifications

Cable Size Range: #2-4/0 AWG

Gender: Female

Connection TypeBus Bar-Double Hole

Termination TypeTaper-Nose

Specifications

Country of Origin: Mexico

RoHS CompliantTrue

Product Features

Color: Green

Special Features: PEM/Self-Clinching Nuts

Series16 Series

Warranty

Warranty: 2-Year Limited

Electrical Specifications

Max. Amperage: 400A

Short Circuit Current Rating: 35kA

Max. Voltage636 VAC/DC

Standards & Certifications

CSA: 1691

UL: 1691

NEMA RatingType 3R
