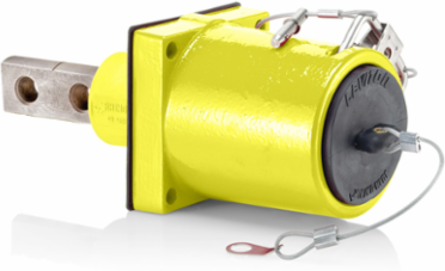

Leviton 49FR2-XY Rhino-Hide 45 Degree Female Receptacle, 313-777 MCM, 1135 Amp Max, 1000 Volt
- MPN: 49FR2-XY
- UPC: 078477386781
- PPN: LEV-49FR2-XY
CAD
$1435.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Rhino-Hide 49 Series Double Hole Female 45 Degree Receptacle (Color Coded Metal Housing, Contact, Captive Clevis Pin & Dust Cap), Double Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000 Volt, 1135 Amp Max - YELLOW
Features
- Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
- Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
- TPV cap prevents contamination when receptacle is not in use
- Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| NEMA Rating | Type 3R |
|---|
| UL | Recognized Component |
|---|
Material Specifications
| Bus Bar Contact | Silver-Plated High Conductivity Alloy |
|---|---|
| Clevis Pin | Stainless Steel |
| Housing Gasket | Rubber |
| Receptacle Housing | Powder-Coated Cast Aluminum |
| Bus Bar Insulator | Santoprene TPV |
|---|---|
| Dust Cap | Santoprene TPV |
| Padlock Bracket | Stainless Steel |
Mechanical Specifications
| Gender | Female |
|---|
Product Features
| Color | Yellow |
|---|
Electrical Specifications
| Connector Termination | Bus Bar-Double Hole |
|---|---|
| Max. Voltage | 1000 Volts AC/DC |
| Max. Amperage | 1135 Amp |
|---|
