Leviton 49FR1-XR 49 Series Female Receptacle, 313-777 MCM, Single Hole Bus Bar, Angled Clevis Pin

49 Series Female Receptacle, 313-777 MCM, Single Hole Bus Bar, Angled Clevis Pin
49 Series Female Receptacle, 313-777 MCM, Single Hole Bus Bar, Angled Clevis Pin
49 Series Female Receptacle, 313-777 MCM, Single Hole Bus Bar, Angled Clevis Pin
  • MPN: 49FR1-XR
  • UPC: 078477387368
  • PPN: LEV-49FR1-XR

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1435.16/ EA

Description

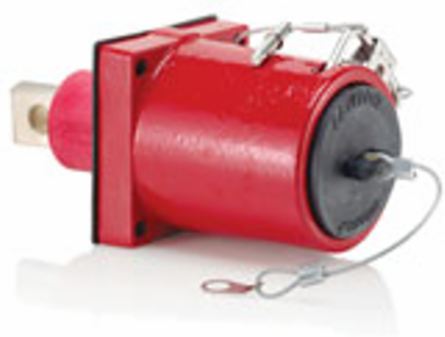

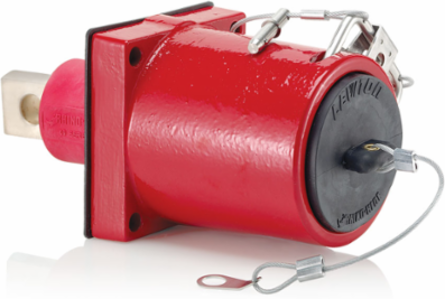

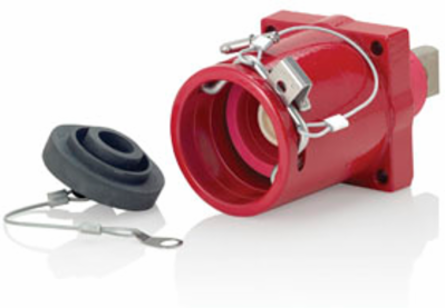

Rhino-Hide 49 Series Single Pole Female 45 Degree Receptacle (Color Coded Metal Housing, Contact, Captive Clevis Pin & Dust Cap), Single Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000 Volt, 1135 Amp Max - RED

Features

  • Rhino-Hide receptacles include a bus bar with male or female contact inserted into a Santoprene TPV insulator which is protected by a powder coated metal housing and TPV dust cap. A clevis pin (included) and padlock shackle secure the bus bar. Bus bars are available with single or double holes and each is compatible with the full cable range, 313 MCM to 777 MCM. Choose a male bus bar for the power side of the circuit or a female bus bar for the motor load side of the circuit. "X" Version receptacle housings feature a 45-Degree angle stainless steel clevis pin that permits ganging of multiple receptacles in a very close proximity to each other (as close as 1/4-Inch for installation on smaller panels).

Specifications

Standards and Certifications

NEMA Rating
Type 3R
ULRecognized Component

Material Specifications

Bus Bar Contact
Silver-Plated High Conductivity Alloy
Clevis Pin
Stainless Steel
Housing Gasket
Rubber
Receptacle Housing
Powder-Coated Cast Aluminum
Bus Bar InsulatorSantoprene TPV
Dust CapSantoprene TPV
Padlock BracketStainless Steel

Mechanical Specifications

Gender
Female

Specifications

Country of Origin
Please Contact Customer Service
RoHS CompliantFalse

Product Features

Color
Red

Electrical Specifications

Connector Termination
Bus Bar-Single Hole
Max. Voltage
1000 Volts AC/DC
Max. Amperage1135 Amp

Downloads
