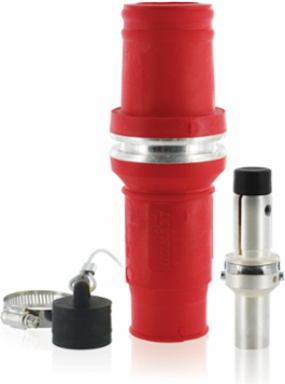

Leviton 49M31-R Rhino-Hide Male Plug 313 MCM, 1000 Volt, 636 Amp, Red

  • MPN: 49M31-R
  • UPC: 078477273326
  • PPN: LEV-49M31-R

CAD

$1230.14

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Rhino-Hide 49 Series Single Pole Male Connector (Contact, Insulator, & Dust Cap), Industrial Grade, Crimped, 313 MCM Cable, 1000 Volt, 636 Amp Max - RED

Features

  • Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
  • Color-coded connector insulator for quick visual identification of circuit and phase connections
  • UV stable, high-performance TPV insulator resists cracking for greater service life
  • Leviton plugs mate with other manufacturers' high-amperage single pole plugs and receptacles for fast, easy change out.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginPlease Contact Customer Service
RoHS CompliantFalse

Standards and Certifications

NEMA RatingType 3R
ULRecognized Component

Material Specifications

Cable ClampStainless Steel
Connector Retention RingAnodized Aluminum
Male ContactSilver-Plated High Conductivity Alloy
Connector InsulatorSantoprene TPV
Dust CapSantoprene TPV

Product Features

ColorRed

Electrical Specifications

Max. Amperage636
Max. Voltage1000 Volts AC/DC
Rhino-Hide Male Plug 313 MCM, 1000 Volt, 636 Amp, Red
