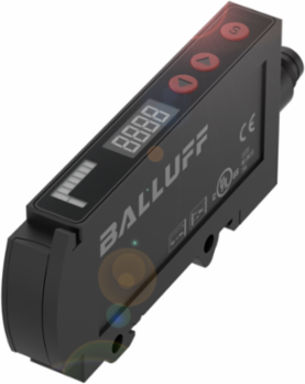

Balluff BFB 75K-002-P-S75 Fiber-based devices for plastic and glass fibers - BFB0006
- MPN: BFB 75K-002-P-S75
- PPN: BAL-BFB0006
CAD
$492.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fiber-based devices for plastic and glass fibers - BFB0006
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|---|
| Dimension | 10.4 x 35.4 x 84 mm |
| Principle of operation | Fiber optic device |
| Setting | LCD read direction; Time function; Factory setting (Reset); Mode normal/fine/fast/far; Duration of single pulse; Rated switching distance (Sn), 2 values; Display on/off; Delay time; Key disable on/off; Light-on/dark-on; Sensitivity (Sn) |
| Light type | LED Red light |
| Housing material | ABS |
| Approval/Conformity | cULus; CE; WEEE |
| Series | 75K |
|---|---|
| Interface | PNP NO/NC |
| Input function | Teach Sn; Key disable on/off |
| Operating voltage Ub | 10...30 VDC |
| Connection | Connector, M8x1-Male, 4-pin |
| Switching frequency | 8000 Hz /1000 Hz/125 Hz |
