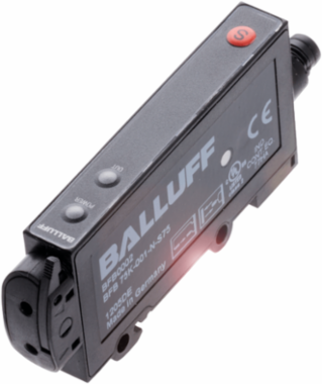

Balluff BFB 75K-001-N-S75 Fiber-based devices for plastic and glass fibers BFB 75K-001-N-S75
- MPN: BFB 75K-001-N-S75
- PPN: BAL-BFB0002
CAD
$324.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Balluff's light guide sensors are used if the usual optical sensor is too large or too rigid for the application. Our light guide sensors are optionally combined with plastic or glass fiber optics for a complete sensor. Thanks to their different properties, you have maximum flexibility depending upon the application.
Documentation & Downloads
Specifications
Key Specifications
- Series
- 75K
- Interface
- NPN NO/NC
- Input function
- Same function as button, Key disable on/off
- Operating voltage Ub
- 10-30 VDC
- Connection
- Connector, M8x1-Male, 4-pin
- Switching frequency
- 1500 Hz
Dimension10.4 x 35.4 x 84 mm
Principle of operationFiber optic device
SettingLight-on/dark-on, Factory setting (Reset), Sensitivity (Sn)
Light typeLED Red light
Housing materialABS
Approval/ConformityCE, cULus, EAC, WEEE
