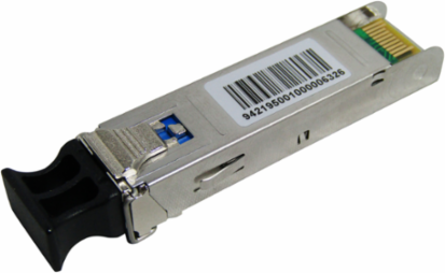

Schneider Electric TCSEAAF1LFU00 Fiber SFP Module 1000BASE-SX Multimode, 0.04 kg, 18 mm Height
- MPN: TCSEAAF1LFU00
- PPN: SCH-TCSEAAF1LFU00
- UNSPSC: 43221811
CAD
$726.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Fiber SFP Module from Schneider Electric is designed for high-performance data communication applications, utilizing the 1000BASE-SX Multimode standard to facilitate rapid data transfer. With its compact design, measuring just 18 mm in height, this module offers an efficient solution for integrating into various fiber optic systems, ensuring reliable connectivity across network components. Its lightweight construction enhances installation versatility while maintaining the robust performance needed for contemporary networking demands. Perfectly suited for environments where space is at a premium, this module exemplifies efficiency and reliability in data transmission.
Features
- SFP transceivers based on single/multi mode/RJ45
- Gigabit Ethernet for flexibility in product selection
- Provide high reliability to the network connectivity
- Follows industrial standards
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 50 mm |
|---|
Communications & Management Attributes
| Communication Port Type | FO port |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Mode Of Transmission | multi mode 50/125 µm, multi mode 62.5/125 µm |
| Local Publishable Date | 2026-01-12 |
| Device Type | Networking and Cable Solutions - Networking Devices |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2023 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Operating Distance | 0.55 Km |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon Networking |
| Sustainable Packaging | No |
| Width Nominal | 20 mm |
| Accessory / Separate Part Destination | gigabit ports with LC connector |
| Accessory / Separate Part Designation | fiber optic adaptor |
| Customs Code | 8517620090 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Weee Scope | Out |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Port Ethernet | 1000BASE-SX |
| Product Or Component Type | SFP module |
| Returnability | No |
| Height Nominal | 18 mm |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Type | fiber optic adaptor |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Product Compatibility | MCSESM switch, TCSESM switch |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Ambient Air Temperature For Operation | 0-60 °C |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
General Attributes
| Product Or Component Type | SFP module |
|---|
| Range Of Product | Modicon Networking |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|---|
| ETIM 10 | EC002584 |
| ETIM 9 | EC002584 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
