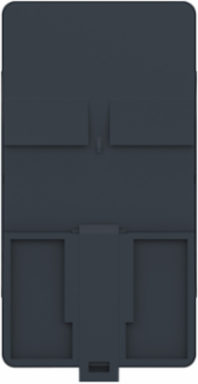

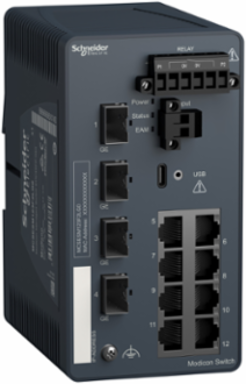

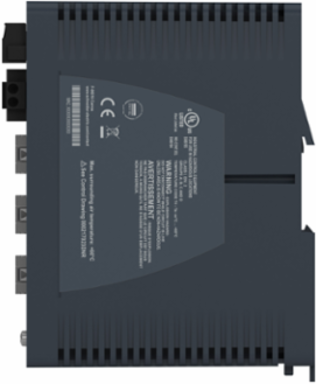

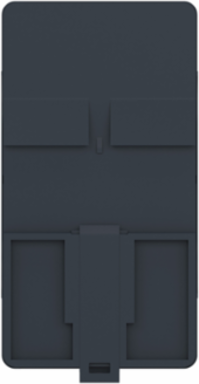

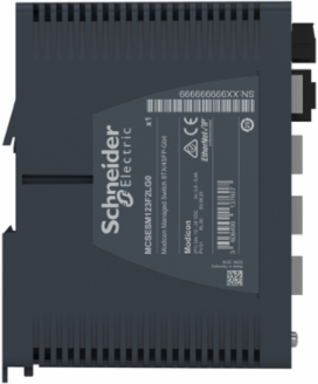

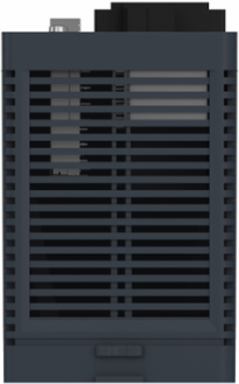

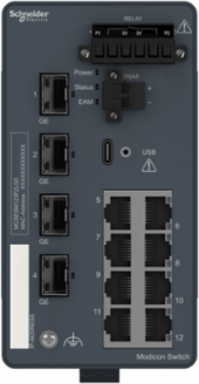

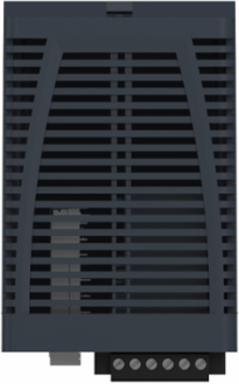

Schneider Electric MCSESM123F2LG0 Modicon Managed Network Switch, 8 Ports for Copper, 4 Gbps SFP

MPN: MCSESM123F2LG0
PPN: SCH-MCSESM123F2LG0
UNSPSC: 43222612

$3855.86

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Modicon Managed Network Switch from Schneider Electric exemplifies reliability and high performance in network management, featuring eight ports designed for copper connections and a robust 4 Gbps SFP capability. This switch ensures seamless communication and data transfer within industrial environments, making it an essential component for those looking to enhance their network infrastructure. With its sophisticated design, it supports efficient management of network resources, catering to the complex demands of modern automation and control systems.

Features

High performance and robust hardware with more flexibility and features give customers more options
Provides simple connectivity for multiple Ethernet devices
Enhanced native cyber secure features help to protect and transmit data across the network at the high level of security
High network availability with the support of different ring protocols or functions, such as HIPER-ring, RSTP, MRP etc.
Easy configuration and administration process via HTML5 based web pages

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Depth	117.6 mm

Communications & Management Attributes

Alarm Function	power supply fault, data link status, switch fault, temperature threshold, redundancy ring fault, incorrect configuration, external memory removed
Communication Service	TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection

Communication Port Protocol	Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, OPC UA, IEC 61850 MMS Server
Alarm Output	1 voltfree contact 1 A

Complementary Attributes

Integrated Connection Type	shielded RJ45 copper cableSFP port fiber optic (Gbit)
Maximum Number Of Switches In A Ring	50
Us Rated Supply Voltage	12...24 V

Maximum Cable Distance Between Devices	100 m copper cable
Maximum Number Of Switches In Cascade	unlimited

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Cybersecurity	port hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner, TACACS+
Ethernet Service	configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
Local Signalling	1 dual colour LED (green/yellow) for P1 P2 power supplies1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic
Redundancy	HiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP, redundant coupling protocol, MSTP
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	4
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Ethernet Cabling System	TF switches
Number Of Port	12
Number Of Uplink Port	4 SFP 10/100/1000 Mbps
Power Consumption In W	9 W
Product Or Component Type	Ethernet TCP/IP managed switch
Returnability	Yes
Sustainable Packaging	No
Height Nominal	142.8 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Diagnostics Run Time	signal contact, self test, MAC notification, RSPAN, SFLOW
Function Available	security status, alarms (Traps), system information, report
Marking	CE, cULus, RCM
Certificate Agency	CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, FCC part 15 class A, CCC Ex
Local Publishable Date	2026-01-12
Device Type	Networking and Cable Solutions - Networking Devices
Traceability	Yes
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2003019EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2027
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Advanced
Market Segmentation	Industrial
Electrical Connection	removable connector 6 ways power supply
Mounting Support	35 mm symmetrical DIN rail
Number Of Rj45 Port	8 10/100 Mbps
Port Ethernet	10/100BASE-TX - 8 copper cable100/1000 SFP - 4
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Modicon Networking
Supply Voltage Limits	9.6-32 V DC SELV
Transmission Support Medium	twisted shielded pairs cable CAT 5E copper cablefiber optic cable fiber optic (Gbit)
Width Nominal	73 mm
Customs Code	8517620020

Environment Attributes Main

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2003019EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2003019EN

Take Back	No
China Rohs Regulation	X
Ambient Air Temperature For Operation	0-60 °C
Environmental Disclosure	ENVPEP2003019EN
Ip Degree Of Protection	IP30
Packaging Without Single Use Plastic	No
Relative Humidity	1-95 % non-condensing
