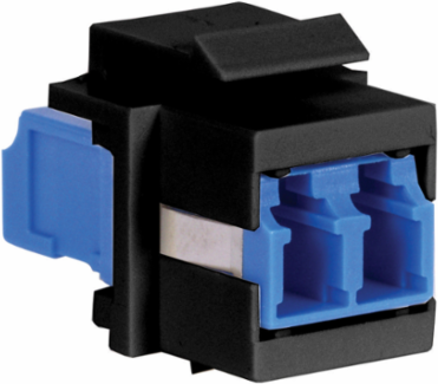

Hubbell Premise Wiring SFFLCSAQBK Fiber Optic Connector LC Duplex Snap-Fit Flush 0.58" x 0.76" Aqua Black Housing
- MPN: SFFLCSAQBK
- UPC: 662620307282
- PPN: HBL-SFFLCSAQBK
- UNSPSC: 43223310
CAD
$38.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fiber Optic Connectors, Snap-Fit, Flush, LC-Duplex, Zircon Sleeves, Aqua, Black Housing.
Features
- Snap Fit
- Black Housing
- Flush
- LC Duplex
- Aqua Adapter
- Standard Product
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Width
- 0.600 in
- Size
- .58" X .76"
- Color
- Aqua
- Insertion Loss
- 0.75 dB
- Repeatability
- 0.1 dB
- Service Life
- 500 matings
- Standard
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-10
- Temperature Rating
- 0C to 70C
- Connectivity
- Receptacle
- Style
- LC Duplex
- Description - Invoice
- FIBER, SNAP-FIT,FLSH,LC DUPLX,AQ,ZIRC,BK
- Harmonization Code
- 8536700000
- MSDS Flag
- No
- Sub Class Code
- HPWALL2
- Material
- Ceramic
- BOX SIZE
- 4.400x3.500x6.400 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 662620307282
- Case - Total Units
- 650 EA
- Each - Pack Description
- Each
- NAICS Code
- 3342104145
Color - HousingBlack
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-10
ApplicationData Outlet
Fiber Size125 Micron
MountingFlush
Return Loss55
Special FeaturesStandard Product
Sub BrandOptiChannel
General Literature Asset 1 Display TextIntegrating AV Systems
Mounting TypeFlush
Class CodeA68
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberSFFLCAQBK
Material - Mounting HardwareSnap-In, Keystone
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Case Weight65.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
