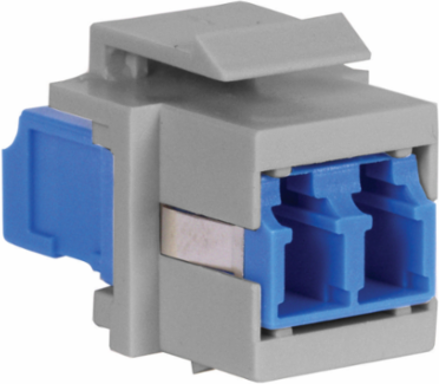

Hubbell Premise Wiring SFFLCSAQG Fiber Optic Connectors, LC Duplex, Flush Mount, Aqua & Gray Housing, 0.600 Inch Width
Hubbell Premise Wiring SFFLCSAQG Fiber Optic Connectors, LC Duplex, Flush Mount, Aqua & Gray Housing, 0.600 Inch Width
- MPN: SFFLCSAQG
- UPC: 662620307299
- PPN: HBL-SFFLCSAQG
- UNSPSC: 43223310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$38.08/ EA
Description
Fiber Optic Connectors, Snap-Fit, Flush, LC-Duplex, Zircon Sleeves, Aqua, Gray Housing.
Features
- Snap Fit
- Gray Housing
- Flush
- LC Duplex
- Aqua Adapter
- Standard Product
Specifications
Specifications
- Country of Origin
- Taiwan
- Width
- 0.600 in
- Size
- .58" X .76"
- Color
- Aqua
- Insertion Loss
- 0.75 dB
- Repeatability
- 0.1 dB
- Service Life
- 500 matings
- Standard
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-10
- Temperature Rating
- 0C to 70C
- Mounting Type
- Flush
- Class Code
- A68
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- SFFLCAQG
- Material - Mounting Hardware
- Snap-In, Keystone
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- Each - Pack Description
- Each
Color - HousingGray
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-10
ApplicationData Outlet
Fiber Size125 Micron
MountingFlush
Return Loss55
Special FeaturesStandard Product
Sub BrandOptiChannel
ConnectivityReceptacle
StyleLC Duplex
Description - InvoiceFIBER, SNAP-FIT,FLSH,LC DUPLX,AQ,ZIRC,GY
Harmonization Code8536700000
MSDS FlagNo
Sub Class CodeHPWALL2
MaterialCeramic
BOX SIZE4.400x3.500x6.400 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack662620307299
Case Weight65.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
